Mud Mount Kits for the TPS-6X-DSW Crestron MMK/WMKM-6X-DSW

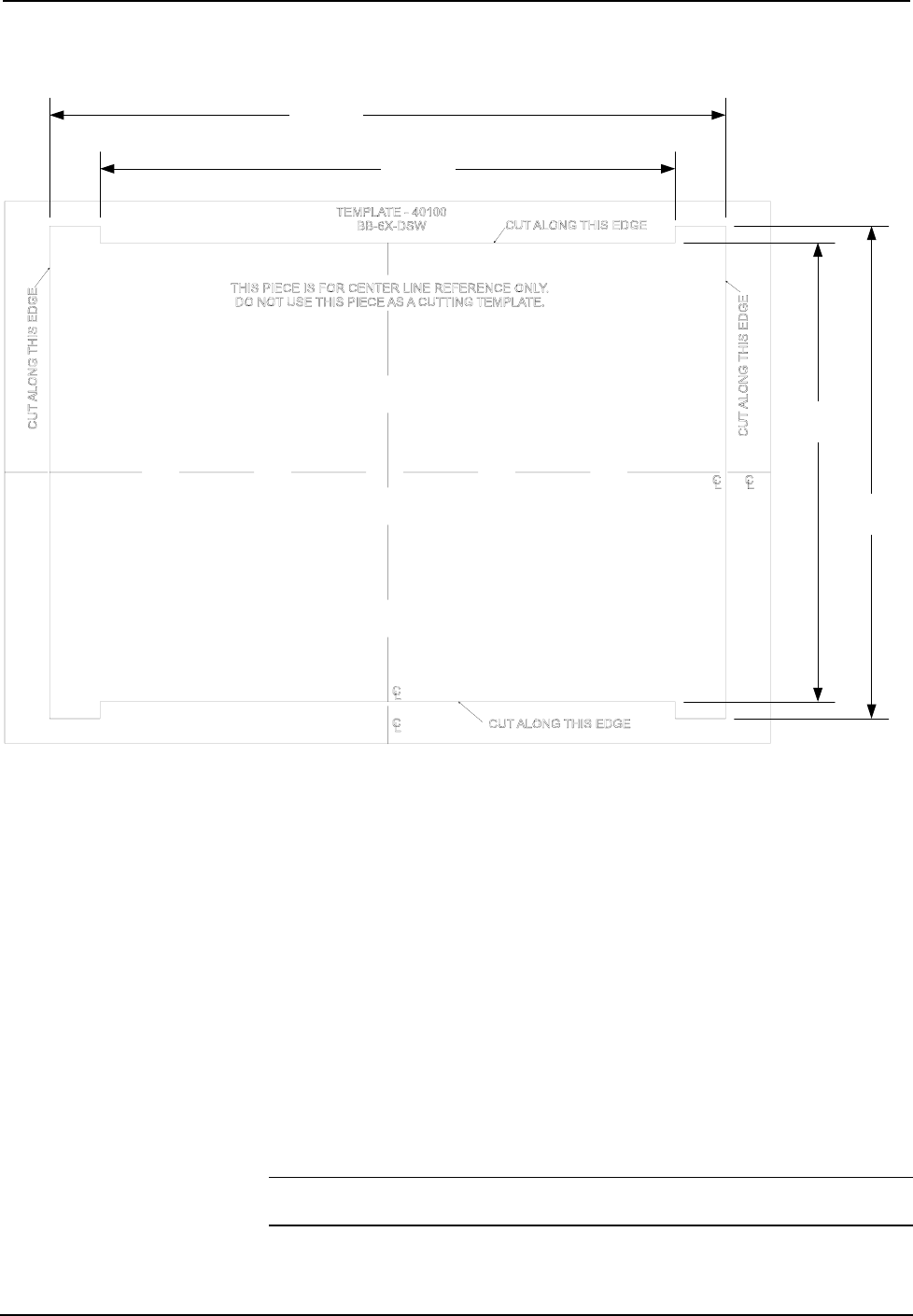

Drywall Cutout Template and Dimensions (supplied with WMKM-6X-DSW only)
7 11/16 in
(196 mm)
9 1/16 in
(230 mm)
6 9/16 in
(167 mm)
6 1/8 in
(156 mm)
Installation
This section provides an installation procedure for each Mud Mount Kit. The
“MMK-6X-DSW Procedure” starts below and the “WMKM-6X-DSW Procedure”
starts on page 7. Be sure to review each procedure before starting.
MMK-6X-DSW Procedure
This section provides the necessary steps for the assembly of the MMK-6X-DSW
with either the BB-6X-DSW or PKM-6X-DSW. It is assumed that the BB-6X-DSW
or PKM-6X-DSW has been secured to the stud according to the instructions in the
latest revisions of their Installation Guides (Doc. 6728 and Doc. 6778 respectively).
It is also assumed that drywall is in place and a cutout for the TPS-6X-DSW is made
in the drywall.
Complete the steps in the order provided. The only tools or materials required and
not supplied are four standard drywall screws, #2 Phillips screwdriver, a level and
tools/material to apply drywall joint compound.
CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity
above and below the TPS-6X-DSW for heat dissipation.
4 • Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW Installation Guide – DOC. 6779A
