Owner’s manual
57
English
Owner’s manual
(3) GENERAL CAUTIONS
Do not open the case. There are no user serviceable parts inside. If you drop anything into the
unit during installation, consult your dealer or an authorized CLARION service
Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol,
etc. For tough dirt, apply a little cold or warm water to a soft cloth and wipe off the dirt gently.

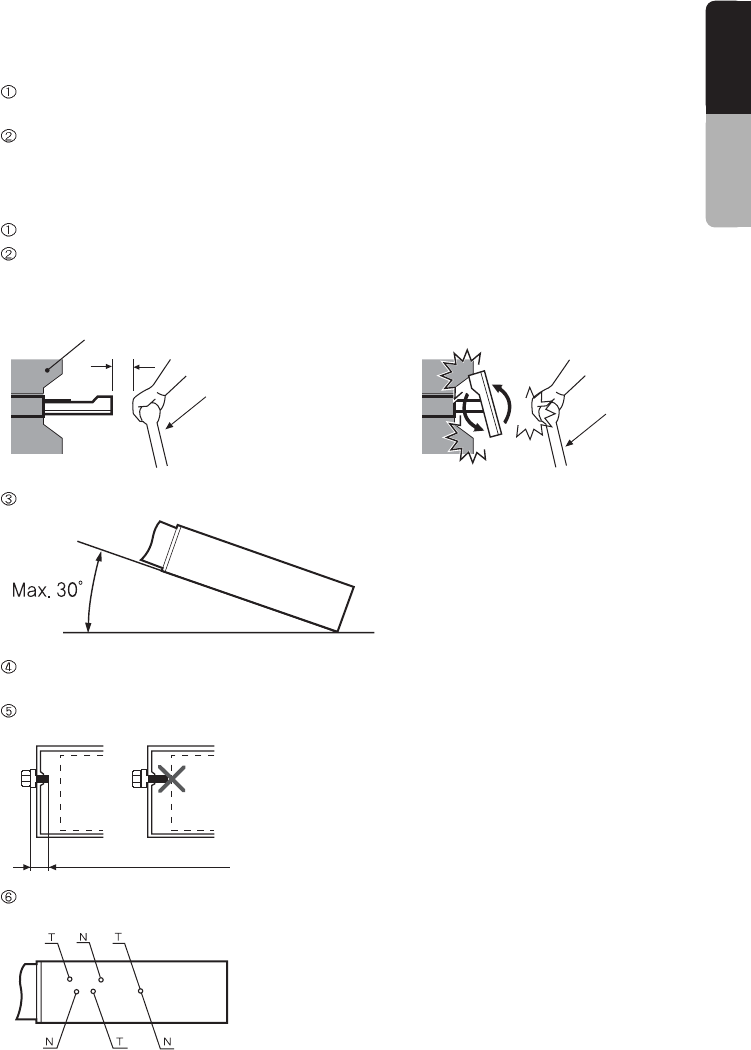

(4) CAUTIONS ON INSTALLATION
Prepare all articles necessary for installing the main unit before starting.
This model is used with the LCD panel slide forwards (shell loading system). On some types of
cars, the LCD panel may touch the dashboard or shift lever, in which case it cannot be
installed. Check that the set will not hamper operation of the shift lever before choosing the
place of installation.
Install the unit within 30° of the horizontal plane.
If you have to do any work on the car body, such as drilling holes, consult your car dealer
beforehand.
Use the enclosed screws for installation. Using other screws can cause damage.
The source unit has mounting screw holes for NISSAN (N marks) and TOYOTA(T marks)
vehicles.
Dashboard
Shift lever
(check that it does not
touch the LCD.)
Chassis Chassis
Damage
Max. 8mm (M5 screw)
Shift lever
11. INSTALLATION AND WIRE
CONNECTION
11-1 Cautions On Installation
(1) BEFORE STARTING
This set is exclusively for use in cars with a negative ground 12 V power supply. Read these
instructions carefully. Be sure to disconnect the battery “ - ” terminal before starting. This is to
prevent short circuits during installation.
(2) PACKAGE CONTENTS
Main unit
Manuals
Owner’s manual & Installation manual 1
Warranty card 1
Power supply lead (For the main unit) 1
RCA lead 1
Bag for accessories of the main unit (No. 1)
Flat head screw (M5 8) 4
Sems hexagonal bolt (M5 8) 5
Electro tap 1
Machine screw (M4
3) 4
Bag for accessories of the main unit (No. 2)
Hook plate 2
Cord clamp 1
Universal mounting bracket 1
Remote control unit 1
Battery (for remote control unit) 2
Outer Escutcheon 1
DCP Case 1
Car battery
