C • Port pin-outs Model 4520 & 4110 Series Getting Started Guide

66 Introduction

Introduction

This section provides pin-out information for the ports of the SmartNode.

Console port

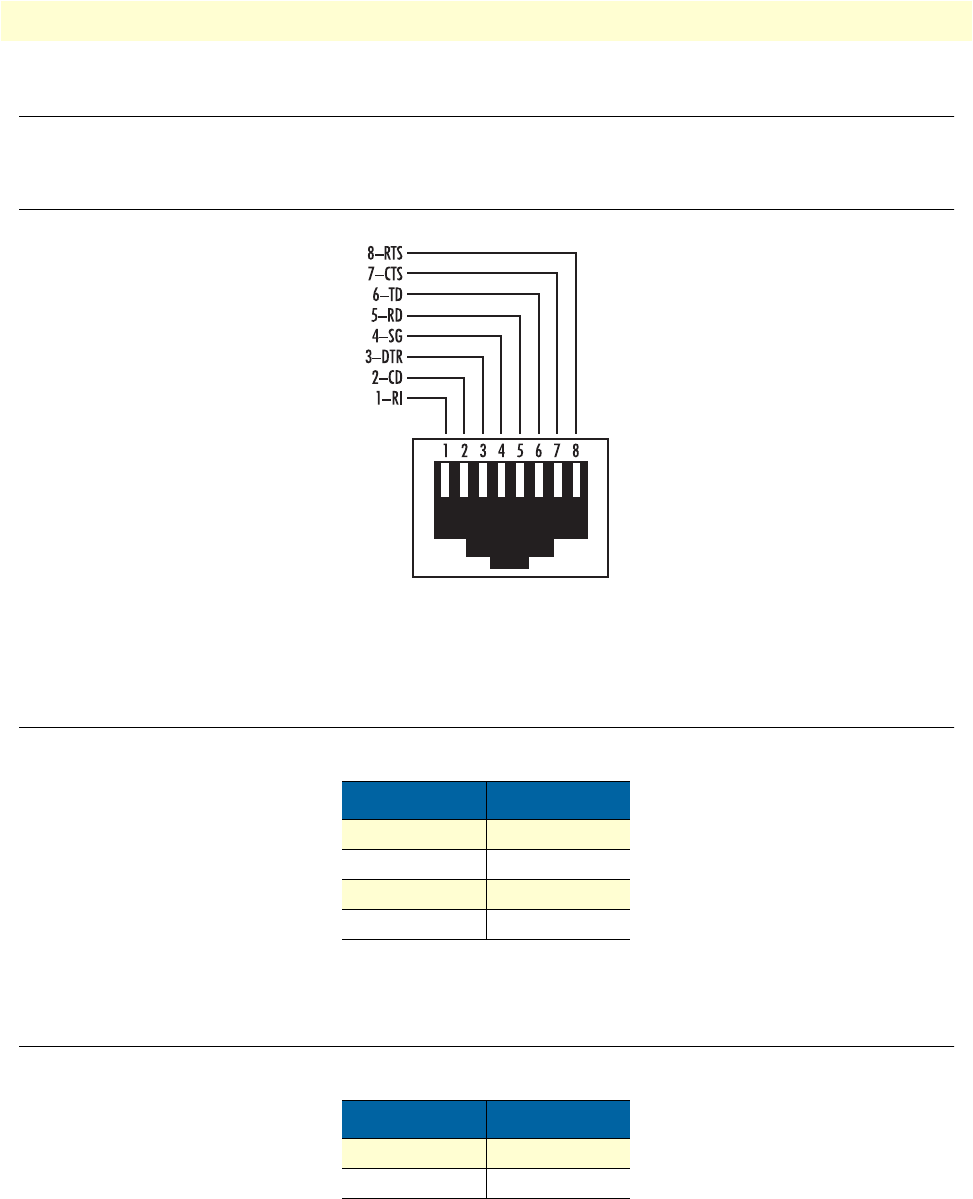

Figure 29. EIA-561 (RJ-45 8-pin) port

Note Pins not listed are not used.

Ethernet 10Base-T and 100Base-T port

Note Pins not listed are not used.

FXS port

Note Pins not listed are not used.

Table 12. RJ-45 socket

Pin Signal

1 TX+

2 TX-

3 RX+

6 RX-

Table 13. RJ-11 socket

Pin Signal

3 Ring (-)

4 Tip (+)
