1 • General information Model 4520 & 4110 Series Getting Started Guide
22 SmartNode Series VoIP routers overview

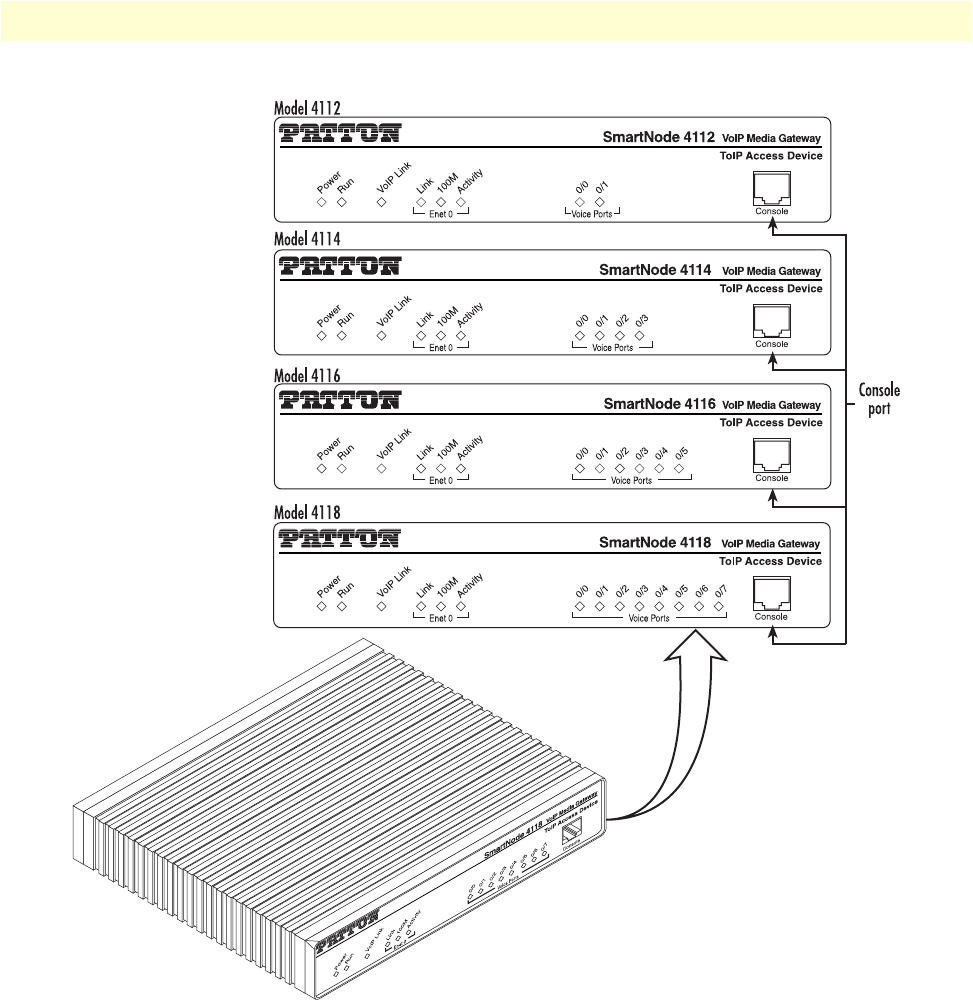

Figure 7. SmartNode 4110 Series front panels
LED descriptions
This section describes the SmartNode 4110 Series front panel LEDs.
Note If an error occurs, all LEDs will flash once per second.
Power—When lit, indicates power is applied. Off indicates no power applied.
Run—When lit, indicates normal operation. Flashes once per second during boot (startup).
