3 • Installation Model 4520 & 4110 Series Getting Started Guide
38 Installing the gateway router
Installing the Ethernet cable
The SmartNode 4520 Series has automatic MDX (auto-cross-over) detection and configuration on the Ether-
net ports. Any of the two ports can be connected to a host or hub/switch with a straight-through wired cable
(see figure 17). Ethernet devices (10Base-T or 100Base-T) are connected to the SmartNode’s Ethernet ports
(see table 8 for port pin-out listing) via a cable terminated with RJ-45 plugs. A cross-over cable is only required
when connecting SmartNode 4110 Series devices to a host (see figure 18 on page 39).
Note Pins not listed are not used.

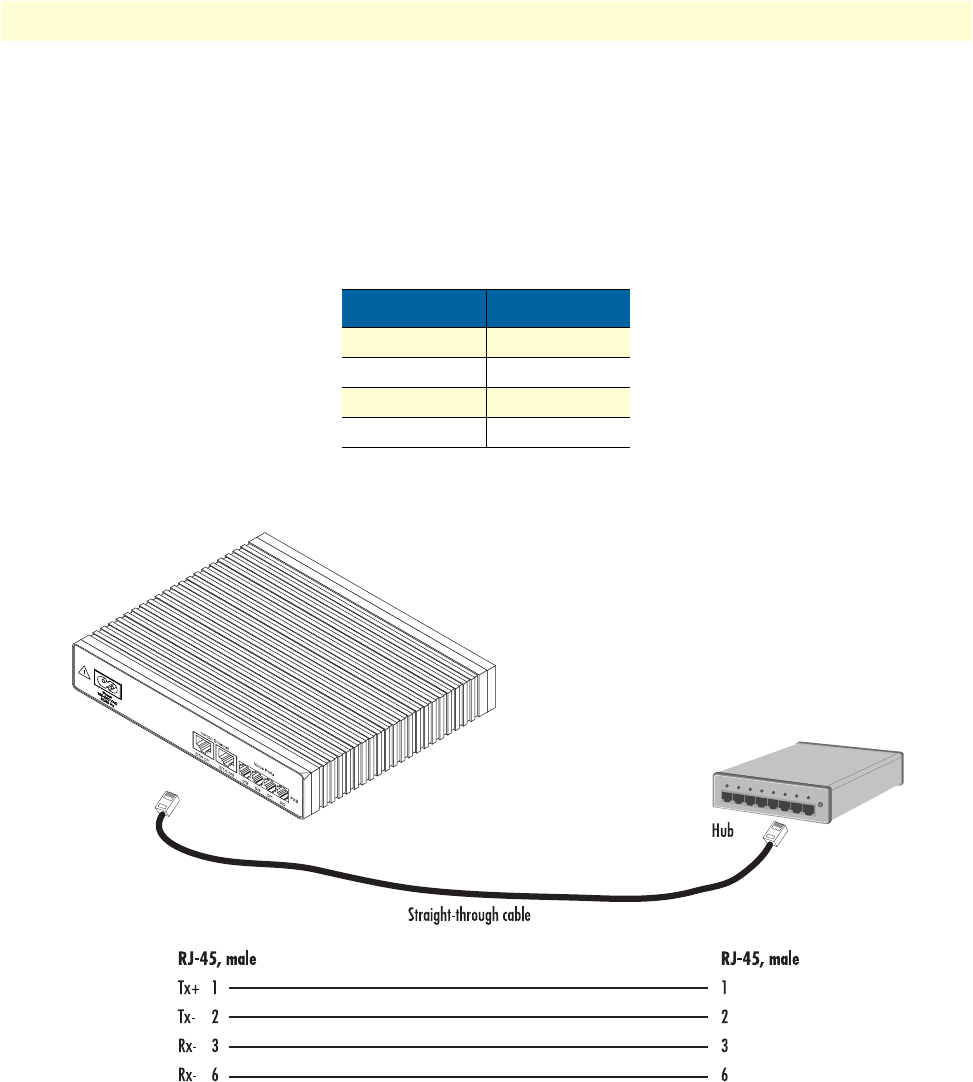

Figure 17. Connecting to a hub
Table 8. Ethernet 10/100Base-T (RJ-45) port pin-outs
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
