Assembly
6 Rev 90038-20080819
Assembly
Your log splitter requires some assembly.
If you have any questions regarding the
assembly of your log splitter, call our help
line at 1-877-338-0999. Please have your
serial number and model number available.
Open Shipping Crate
1. Set the shipping crate on a solid, flat
surface.
2. Carefully cut the shipping bands and
remove lid of shipping crate.
3. Using two people to lift, carefully
remove the engine, oil tank, wheels, tow
bar, support legs, and hardware. (For
parts reference see page 13 in manual.)
4. Leave the hydraulic cylinder/log
cradle in the shipping crate until
step 6 in the assembly process.
5. Locate all hardware before beginning
assembly.
For parts reference see pages
13-15 in the manual.

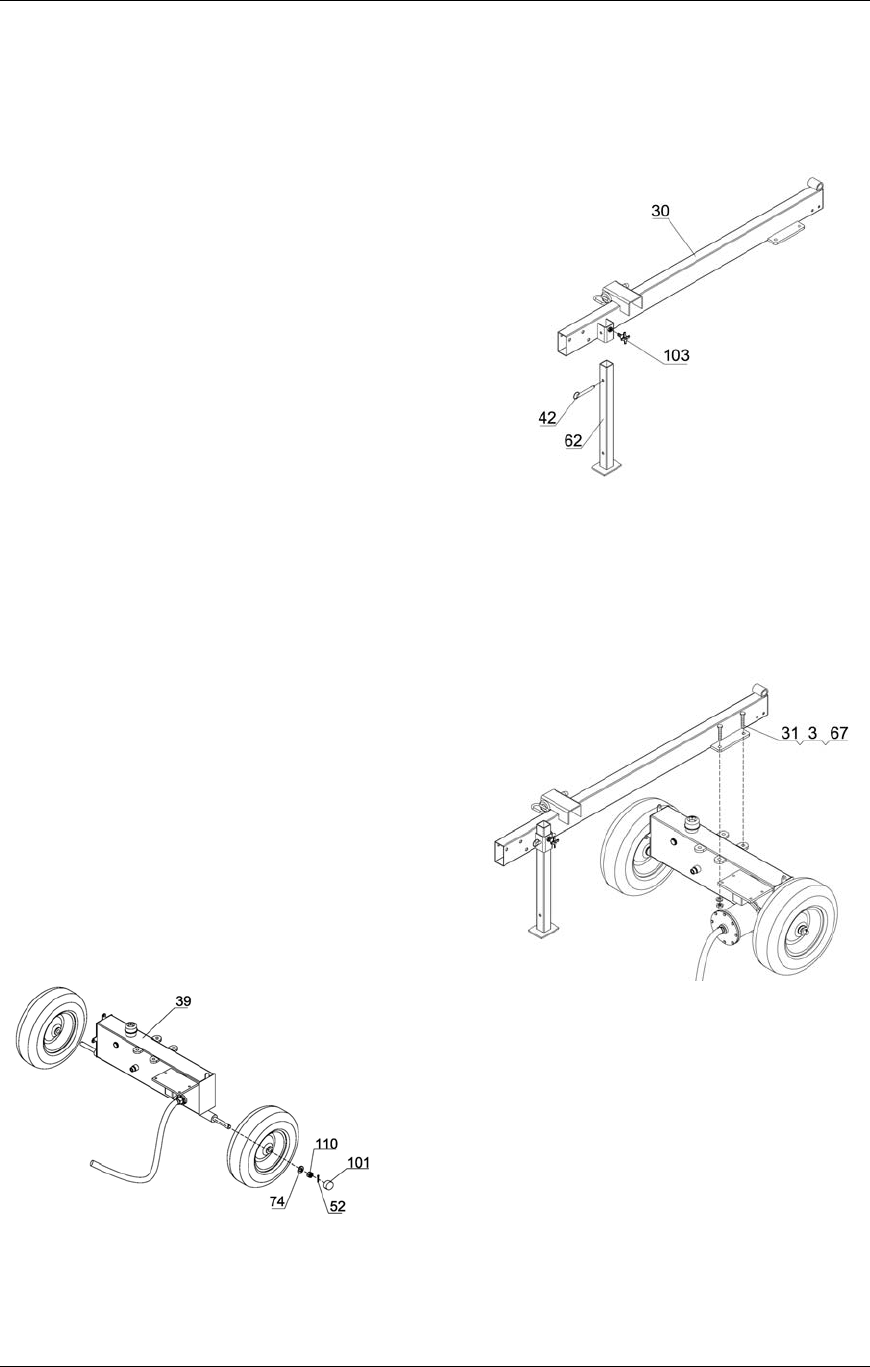

Step 1 – Wheel Assembly
1. Slide wheel onto oil tank axle
2. Slide on 1 flat washer Ø20
3. Secure with slotted nut M16 (#110),
cotter pin, and attach the axle cap (#101)
4. Repeat steps 1-3 for other wheel.
Step 2 – Tow Bar and
Support Leg
1. Slide support leg into mounting bracket
on the tow bar. Secure with pin (42).
Step 3 – Attach tow bar to oil
tank
1. Attach tow bar to using 4 M12x40 bolts,
M12 flat washers and nuts.
2. See diagram for reference
