Assembly
Rev 90038-20080819 7

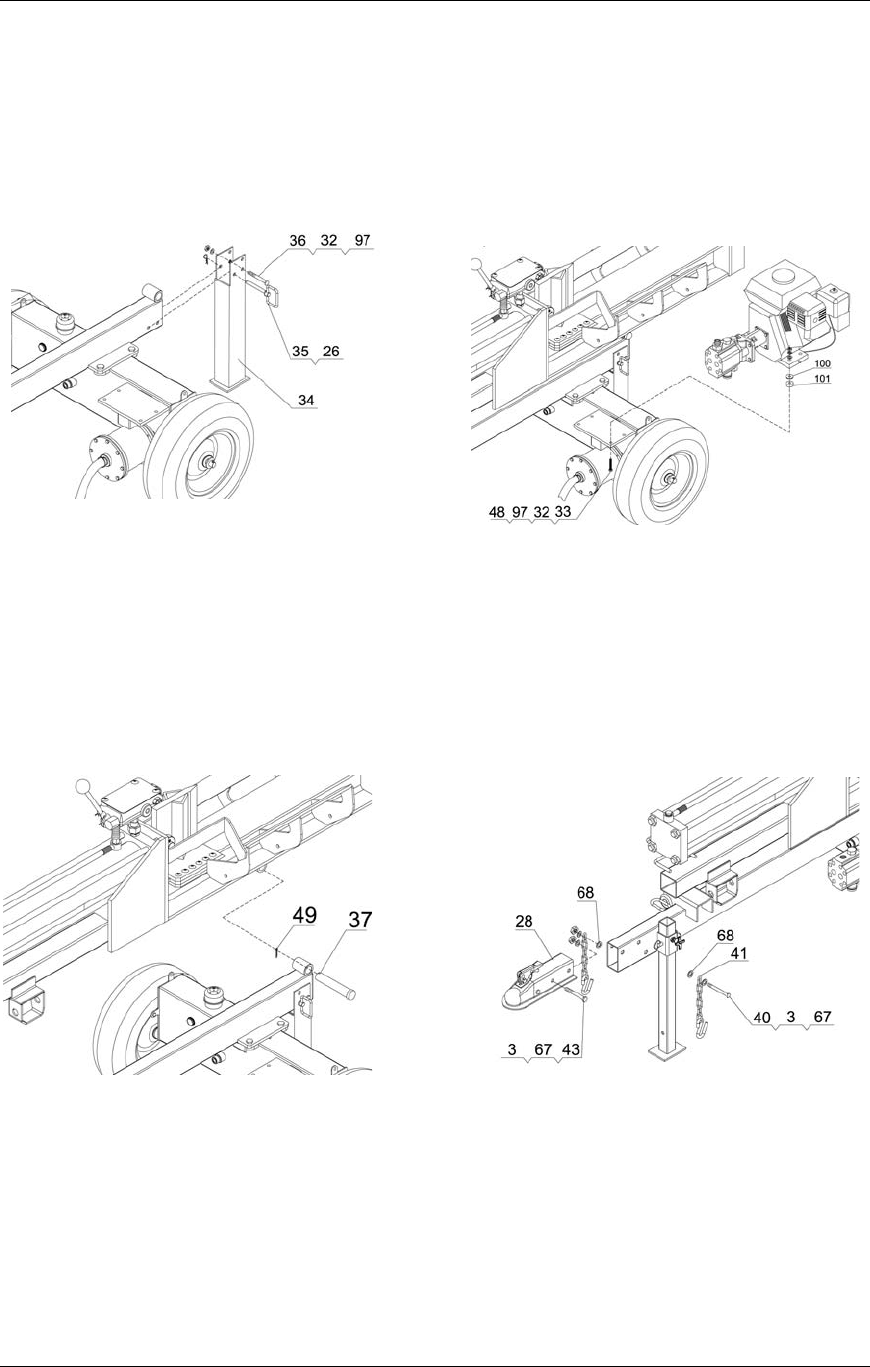

Step 4 – Assemble rear
support leg
1. Attach rear support leg to tow bar using
1 M10x75 bolt, M10 flat washer and nut
2. Slide in hitch pin (35) and secure with R
pin.
Step 5 – Attach hydraulic
cylinder/log cradle
1. Carefully remove the sides of the crate
before lifting the final piece. Using two
or more people, carefully lift the
hydraulic cylinder/log splitter piece out
of shipping crate and onto the tow bar.
2. Slide hinge pin (37) into place. Secure
with cotter pin.
Step 6 – Attach engine
1. Attach the engine to the oil tank
mounting plate using 4 M8x55 bolts, M8
flat washers, lock washers, and nuts.
2. Place 4 polyurethane washers (101) and
4 flat washers (100) between engine and
mounting plate.
Step 7 – Attach ball coupler
and chain
1. Attach the coupler to tow bar using
M12x80 bolts, M12 flat washers and lock
nuts.
2. Attach two chains to tow bar using
M12x90 bolts, M12 flat washer and lock
nuts.
