Connecting the Papa Dock to Your System
A
C Power Guidelines for the Papa Dock
Papa Dock Back Panel Connections
8 Krell
/Papa Dock
AMPLIFIER CHANNEL OUTPUTS
16 Left and Right Outputs
T
wo channel outputs via 5-way binding posts.
VIDEO OUTPUTS
17 Composite Video Output
One composite video output with an RCA connector.
18
S-Video Output
One S-Video output with a DIN connector.
REMOTE CONNECTIONS
19 Comm Port RS-232 Connector
Sends software updates directly to the KID using an
exter
nal computer contr
ol system.
20 12 VDC Out
Sends a 12 V power on/off signal via a 12 V trigger
cable to other Kr
ell components and to other devices
that incorporate 12 V power on/off trigger input.
When the Papa Dock is in the operational mode and
a trigger is enabled, the 12 VDC Out provides 12 V of
DC output. When the Papa Dock is in the stand-by
mode or off, or if a trigger is not enabled, the DC out-
put is 0 V.
POWER CONNECTION
21 IEC Connector
A standar
d male IEC power connector
, for use with
the AC power cord.
C
onnect the Papa Dock to Your System
With the KID docked onto the Papa Dock:
1
. Connect the loudspeaker cables to the Papa
Dock amplifier channel output binding posts
(16) located on the back panel.
The binding post terminals accept spade lugs,
bare wire, or pins. Use the red terminal for the
positive connection and the black terminal for
the negative connection.
IMPORTANT: Tighten loudspeaker binding
posts by hand only.
5. Plug the AC power cord into the amplifier’s IEC
connector (21).
6. Plug the other end of the AC power cord into
the AC wall outlet.
The amplifier is now ready for operation.
CONNECTING TO YOUR SYSTEM, continued
L
EFT OUTPUT
R
IGHT OUTPUT
R
S-232 IN
12VDC
OUT
30 mA
MAX.
COMPOSITE
S-VIDEO
VIDEO OUT
PAPA DOCKPAPA DOCK
KRELL INDUSTRIES, INC.
45 CONNAIR ROAD
O
RANGE, CT 06477-3650
USA
5
0/60 Hz
N
O USER SERVICEABLE PARTS INSIDE
MADE IN USA
16
16
17
18
19
20
21

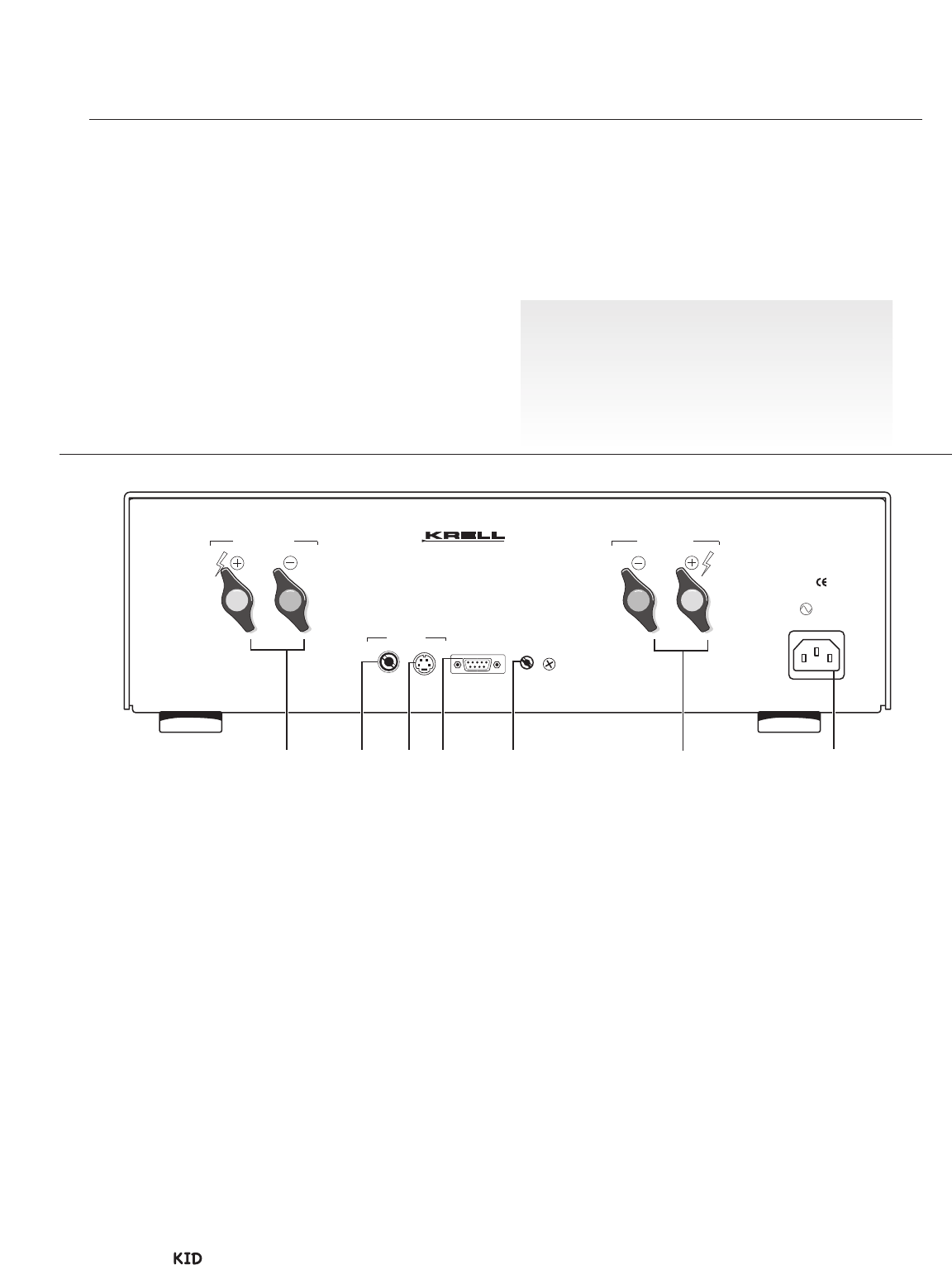

FIGURE 7 Papa Dock Back Panel Connections
AC Power Guidelines for the Papa Dock. Krell
recommends operating the Papa Dock amplifier
from a dedicated 15-amp AC power line. Please
contact your Krell dealer, distributor, or Krell
before using any devices designed to alter or sta-
bilize the AC power for the Papa Dock.
