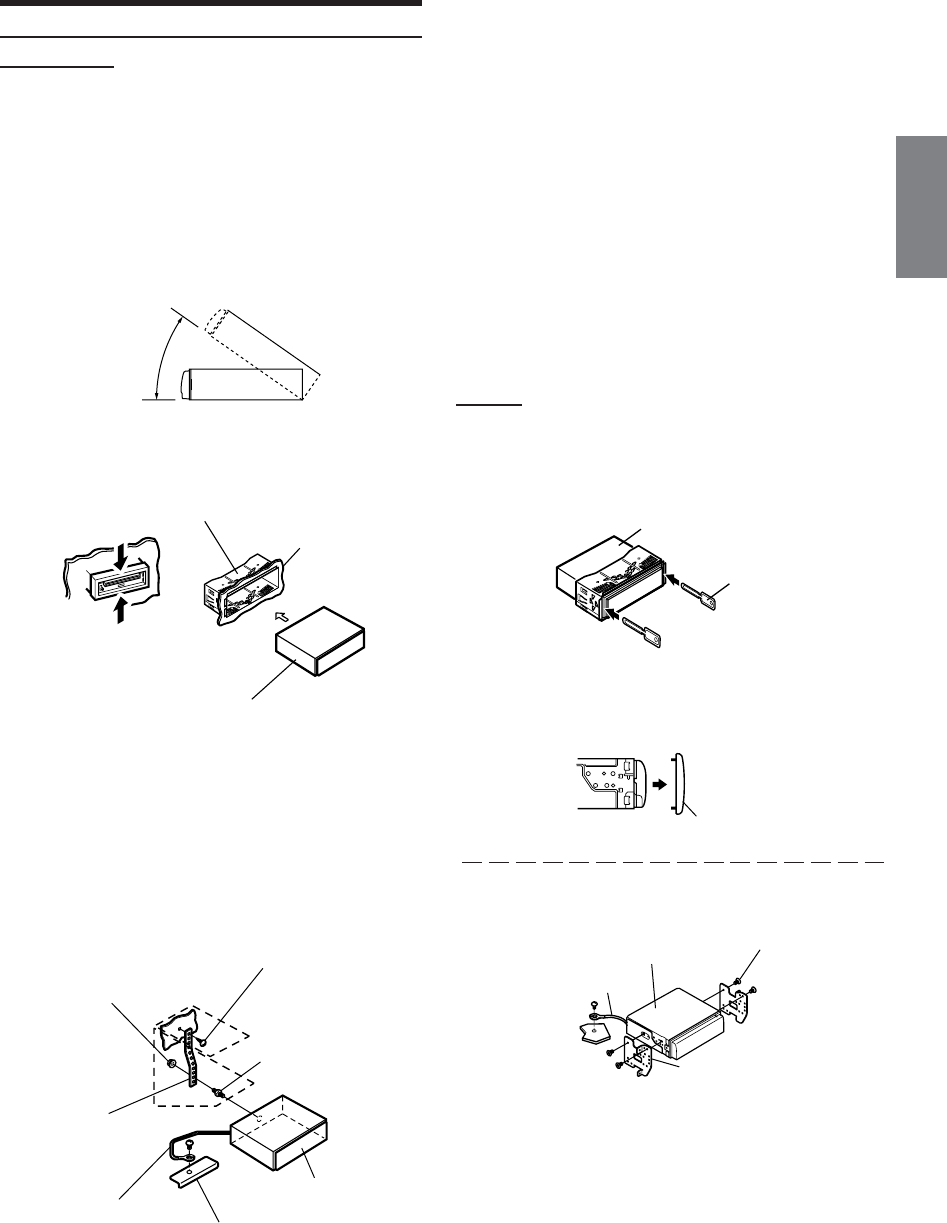

Installation
Accessory List
• Head unit ........................................................................ 1
• Power cable .................................................................... 1
• Mounting sleeve............................................................. 1
• Carrying case ................................................................. 1
• Bracket............................................................................ 2
• Screw (M5 × 8) ................................................................ 4
• Owner’s Manual .......................................................1 set
Note:
The main unit must be mounted within 35 degrees of the horizontal
plane, back to front.
1
Remove the Detachable Front Panel (refer to page
5). Slide mounting sleeve from main unit. (see
“Removal” on this page).
Slide the mounting sleeve into the dashboard.
Please examine the installation. Make certain that no external
pressure is applied to either the top of the unit or the removable
nosepiece.
2
Reinforce the head unit with the metal mounting
strap (not supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (*) already
attached to the vehicle’s chassis.
For the screw marked **, use an appropriate screw for the chosen
mounting location.
Connect each input lead coming from an amplifier
or equalizer to the corresponding output lead
coming from the left rear of the CDE-9846/
CDE-9842. Connect all other leads of the CDE-9846/
CDE-9842 according to details described in the
CONNECTION section.
3
Slide the CDE-9846/CDE-9842 into the dashboard
until it clicks. This ensures that the unit is properly
locked and will not accidentally come out from the
dashboard. Install the Detachable Front Panel.
Removal
1 Remove the DETACHABLE FRONT PANEL.
2 Insert the brackets into the back, along the guides on
either side of the unit. The unit can now be removed
from the mounting sleeve.
3 Pull the unit out, keeping it unlocked as you do so.
<JAPANESE CAR>
Secure the ground lead of the unit to a clean metal spot using a
screw (*) already attached to the vehicle's chassis.
No Pressure Here
No Pressure Here
Mounting Sleeve
(Included)
Dashboard
Metal
Mounting
Strap
Chassis
Screw
Hex Nut (M5)
Bolt Stud
Ground Lead
CDE-9846/CDE-9842
CDE-9846/CDE-9842
**
*
This unit
Bracket (included)
CDE-9846/CDE-9842
Mounting Bracket
Ground Lead
Screws (M5 × 8)
(Included)
*
Front Frame
Less than 35°
