Controls
EDVV VDW DX[
SIRIUS
1. Power On/Off Button ( ): Turns the Boombox power On or Off
Power On Light is blue when the Boombox is powered on (power
on light is under power switch).
2. Volume Up/Down Buttons (+/-): Increases or decreases the
volume level.
3. Source Button (sat /aux): Switches audio output between the
SIRIUS radio and the AUX input
4. Bass button (bass): Turns the bass equalization, On or Off
5. Lock Button: Locks the SIRIUS radio or Docking Adapter in the
Boombox.
6. AUX Connection: Input connection for audio from an external
device, such as an MP3 player, CD Player, etc.
7. Headphone Connection ( ): Stereo headphone jack for private
listening to Boombox.
8. IR receiver for remote control (not supplied)
9. Cable Storage: Storage area for the antenna cable.
10. Antenna Storage: Storage area for the Indoor/Outdoor Antenna.
11. DC12V Power Connector: Connection for the AC Power Adapter.
12. ANT Antenna Connector: Connector for the Indoor/Outdoor
Antenna.
13. Battery Compartment: Battery compartment holds eight “D”
size cells (bottom of unit)
The section following identify and describe the buttons and connectors of the Boombox.
EDVV VDW DX[
SIRIUS

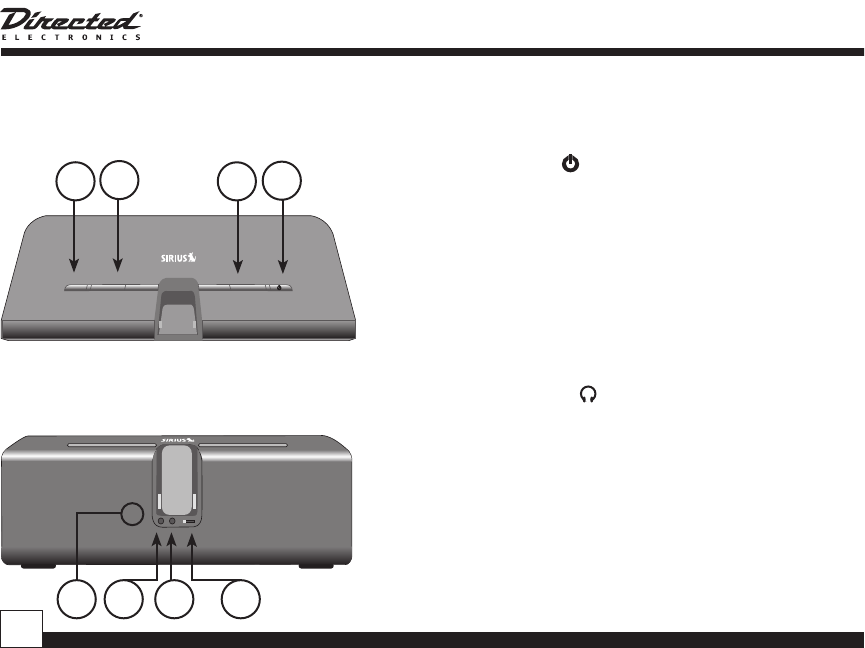

TOP VIEW
FRONT VIEW
1
2
3
4
6
5
7
8
