Printed in China E6E23UD
1VMN25273
★★★★★

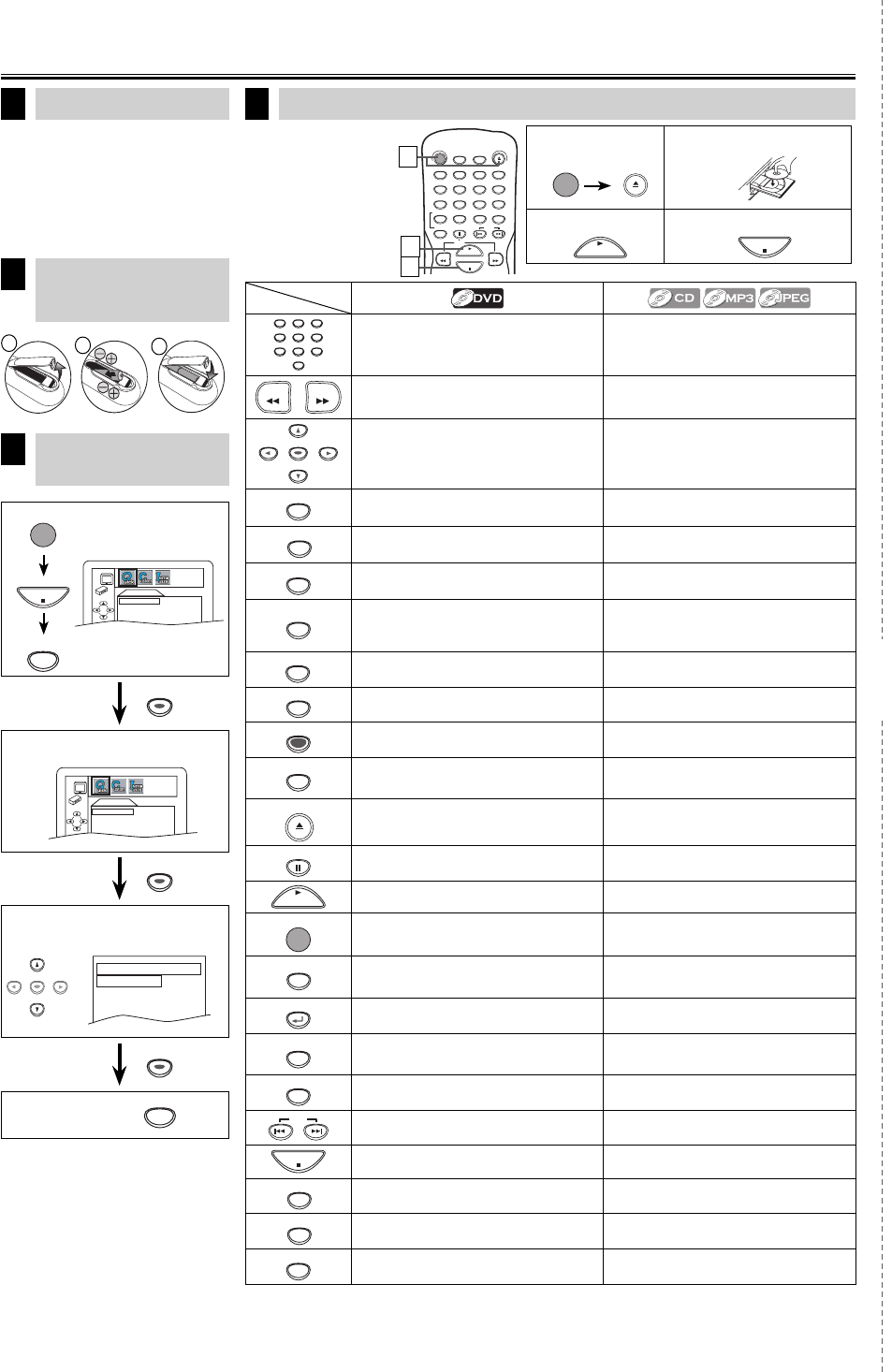

Quick Use Guide
cut here
Connections
Playback
4
If your TV has audio/video input
jacks, see the section “Connection
to a TV” on page 6 of the owner’s
manual. If not, see the section
“Connecting to RF Modulator (Not
Supplied)” on the front page of the
owner’s manual.
Before:
Turn on the TV,
amplifier and any other
equipment which are
connected to this unit.
Make sure the TV and
audio receiver are set
to the correct channel.
1
Installing the
Batteries for the
Remote Control
2
To Change the
On-Screen Language
3
1
Confirm that “QUICK” is
selected.
QUICK SETUP
PLAYER MENU ENGLISH
TV ASPECT
4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
OK
2 Confirm that “PLAYER MENU” is
selected.
QUICK SETUP
PLAYER MENU ENGLISH
TV ASPECT
4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
3 Select the desired language for
the on-screen display.
PLAYER MENU
ENGLISH
FRANÇAIS
ESPAÑOL
4 To exit the menu.
SETUP
POWER
STOP
SETUP
123
456
789
0
• To select chapter or title directly. • To select track or file directly.
REV FWD
• To search forward/backward through a disc.
• To begin slow forward/reverse playback in the
pause mode.
•
To s
earch forward/backward through
a disc.
(CD/MP3)
ENTER
• To move the cursor and determine its position. • To move the cursor and determine its position.
A-B
•
To repeat between your chosen point of A and B.
•
To repeat between your chosen point A and B. (CD)
ANGLE
• To select camera angles on a disc. • To rotate a picture. (JPEG)
AUDIO
• To select audio language on a disc. • To select “STEREO”, “L-ch” or “R-ch”.
(CD)
CLEAR
• To clear the markers.
• To clear the numbers.
• To cancel the point for A-B repeat.
• To clear the markers. (CD)
•
To remove status number in program input.
• To clear the numbers entered incorrectly.
• To cancel the point for A-B repeat. (CD)
DISPLAY
• To display the current disc mode. • To display the current disc mode.
HDMI
• To set the HDMI signal output. • To set the HDMI signal output.
MENU
• To call up the menu on a disc. • To call up the file list. (MP3/JPEG)
MODE
• To set black level on/off.
• To set virtual surround on/off.
• To arrange the playing order or play randomly. (CD)
• To set virtual surround on/off. (CD/MP3)
• To activate the slide show mode. (JPEG)
OPEN/CLOSE
• To open or close the disc tray.
• To turn on the unit.
• To open or close the disc tray.
• To turn on the unit.
PAUSE
• To pause disc playback.
• To advance playback one frame at a time.
• To pause disc playback.
PLAY
• To begin disc playback.
• To turn on the unit.
• To begin disc playback.
• To turn on the unit.
POWER
• To turn the unit on/off. • To turn the unit on/off.
REPEAT
• To play back a chapter or title repeatedly.
• To play back a track or disc repeatedly. (CD)
• To play back a file, folder or disc repeatedly.
(MP3/JPEG)
RETURN
• To return to the previous operation in menu. • To return to the previous operation in menu.
SEARCH
MODE
• To search chapter, title or time.
• To set or search the markers.
• To search tracks.
• To search time. (CD)
• To set or search the markers. (CD)
SETUP
• To call up the setup menu. • To call up the setup menu.
SKIP
• To skip chapters or titles. • To skip tracks.
STOP
• To stop playback. • To stop playback.
SUBTITLE
• To select subtitles on a disc. ------
TOP MENU
• To call up the top menu on a disc.
• To return to the top file in the highest hierarchy of
the program and the file list. (MP3/JPEG)
ZOOM
• To magnify part of a picture. (2x/4x) • To magnify part of a picture. (x2) (JPEG)
Button
(Alphabetical order)
Disc
1
To open the disc
tray
2
Insert a disc with label
facing up.
3
To start playback
4
To stop playback
PLAY
STOP
POWER
OPEN/CLOSE
POWER
AUDI O
SUBTITLE
ANGLE
REPEAT
CLEAR HDMI
A
-
B
PAU S E
SLOW
SKIP
OPEN/CLOSE
DISPLAY
SEARCH
MODE
12
3
45
6
78
9
0
PLAY
REV FWD
STOP
4
3
1
ENTER
2
3
1
ENTER
ENTER
ENTER
