SETUP
–
6
–
EN
analog audio standard picture good picture better picture
AUDIO OUT VIDEO OUT S-VIDEO OUT
COMPONENT
VIDEO OUT
Admiral: AUX
Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93
GE: INPUT, TV/VCR, 00, 90, 91, 92, 93
Hitachi: INPUT, AUX
JVC: VIDEO, VIDEO1, VIDEO2, VIDEO3
Kenwood: AUX
LXI-Series: 00
Magnavox: AUX CHANNEL
Panasonic: TV/VIDEO
RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93
Samsung: TV/VIDEO
Sanyo: VIDEO
Sharp: 00
Sony: VIDEO1, VIDEO2, VIDEO3
Toshiba: TV/GAME
Zenith: 00
SETUP
Connections
TV
This unit
Note:
• Connect this unit directly to your TV. If RCA audio/video cables are connected to a VCR, pictures may be distorted due to the copy
protection system.

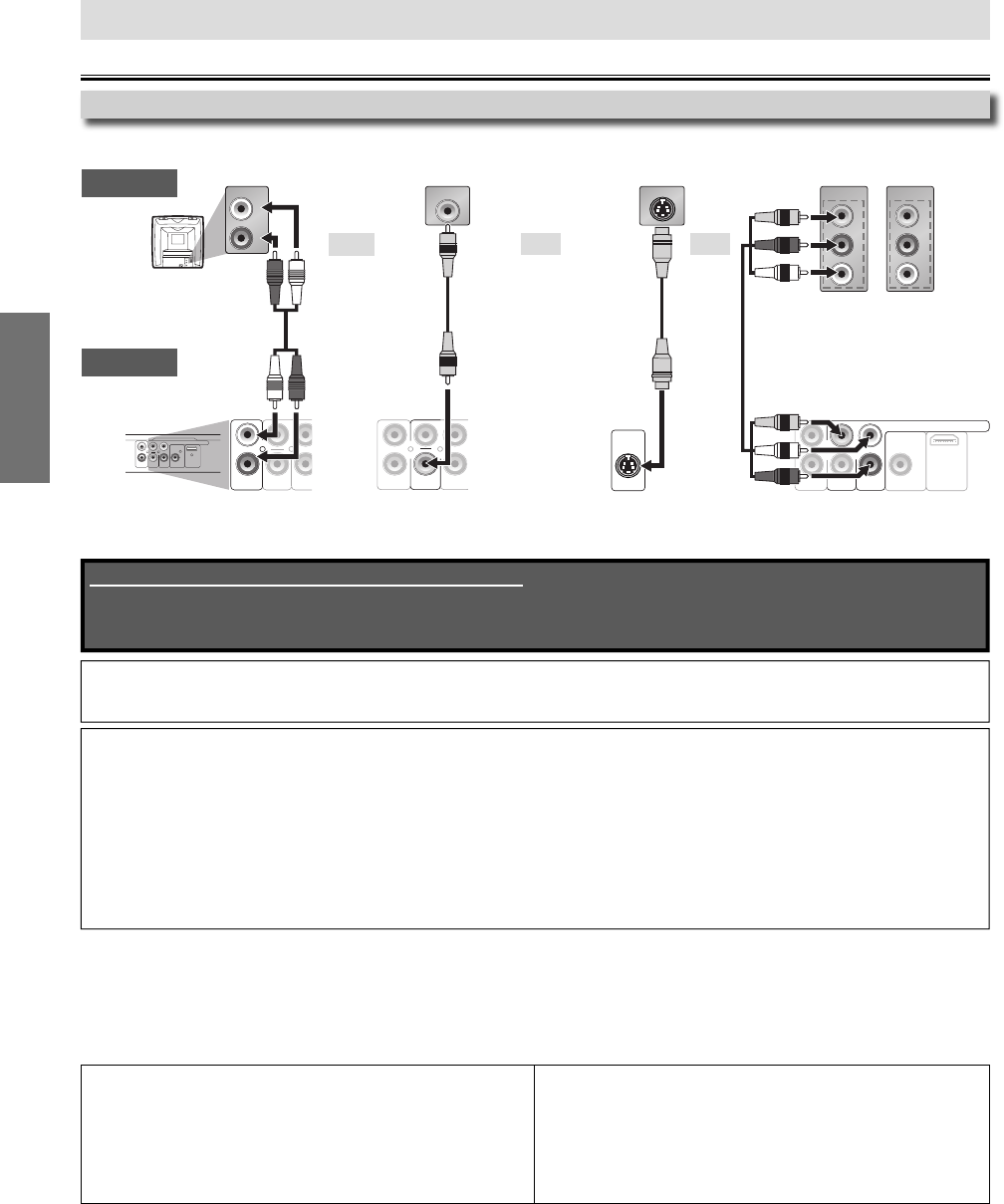

Connection to a TV
After connecting to your TV:
You will need to switch to video input on your TV. This is usually marked TV/VIDEO, INPUT or AUX.
Please refer to your TV’s owner’s manual for details.
Input modes for common TV brands:
Listed below are inputs for common brand name TV’s.
oror
and
If your TV is compatible with 525(480) progressive scanning and you want to enjoy that high quality picture;
You must select the connection COMPONENT VIDEO OUT above and progressive scanning mode. To set the mode, set
“PROGRESSIVE” to “ON” in “DISPLAY” menu, so that the P.SCAN on the front panel display lights up. Refer to pages 19-20 for more
details.
• When “PROGRESSIVE” is “ON”, video signals from the unit’s VIDEO OUT and S-VIDEO OUT jacks will be distorted or not be output at
all.
If your TV is not compatible with progressive scanning;
Use this unit in interlace mode and set “PROGRESSIVE” to “OFF” either in “DISPLAY” menu or by pressing and holding [PLAY B] on
the front of the unit for more than 5 seconds, so that the P.SCAN on the front panel display turns off.
AUDIO IN
VIDEO IN
L
R
AUDIO IN
L
R
VIDEO
OUT
Y
C
B
/P
AUDIO
OUT
R
L
AUDIO
OUT
VIDEO
OUT
COAXIAL
R
L
Y
COMPONENT VIDEO OUT
C
R
/P
R
DIGITAL
AUDIO OUT
C
B
/P
B
HDMI OUT
VIDEO IN
AUDIO
OUT
VIDEO
OUT
R
L
Y
C
B
/P
B
S-VIDEO
OUT
S-VIDEO IN
HDMI OUT
COAXIAL
DIGITAL
AUDIO OUT
AUDIO
OUT
VIDEO
OUT
R
L
Y
COMPONENT VIDEO OUT
C
R/PR
CB/PB
COMPONENT
VIDEO IN
COMPONENT
VIDEO IN
or
P
B
P
R
Y
C
B
C
R
Y
RCA video cableRCA audio cable S-video cable component video cable
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
