– A 110 ohm balanced XLR cable designed for AES/EBU
digital audio is required.
To obtain the best results from your system we
recommend using only high quality Cambridge Audio
interconnects. This will ensure that you hear your system
as we designed it. Please ask you dealer for details.
4. IR (Infrared) input
An IR input is also provided that allows modulated IR remote
control commands to be received electrically by the unit.
This is for connection to the IR Emitter Out for suitable
repeaters or custom install systems.
1. S/P-DIF Outputs (RCA/Phono & Optical)
For output to a separate DAC or the digital input on an
amplifier or A/V receiver. To obtain best results, use a high
quality 75ohm digital RCA interconnect cable (not one
designed for normal audio use).
2. TOSLINK Optical digital output
Used to connect to the input of a separate DAC or the digital
input on an amplifier or A/V receiver. Use a high quality
TOSLINK fibre optic interconnect cable.
3. AES/EBU XLR output
Used to connect to a separate DAC or the digital input on
an amplifier or A/V receiver that supports the AES/EBU
balanced digital input standard.
8

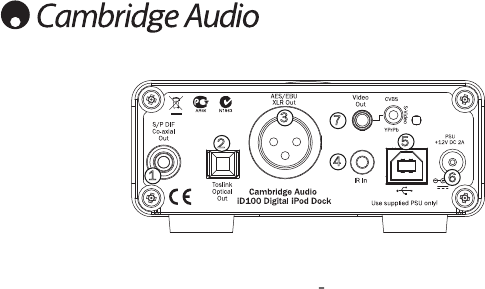

Rear panel connections
