724-746-5500 | blackbox.com Page 11
Chapter 3: DIP Switch Settings
3. DIP Switch Settings
A close-up view of the DIP switches appears in Figure 3-1. Settings for the
6-position DIP switch are described in Table 3-1.

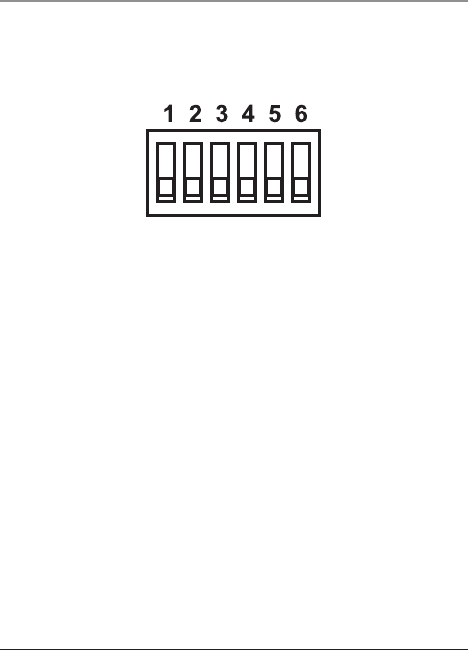

Figure 3-1. DIP switches.
Table 3.1 DIP switch settings.
DIP Switch Down (Default setting) Up Description
Number
1 Enable LFPT Disable LFPT LFPT = Link-fault
passthrough
2 Enable auto-negotiation Enable forced
for TX port mode for TX port
3 TX port forced to TX port forced to
100 Mbps 10 Mbps
4 TX port forced to TX port forced to
full-duplex mode half-duplex mode
5 FX port forced to FX port forced to
full-duplex mode half-duplex mode
