USING THE OPTIONS
4-6

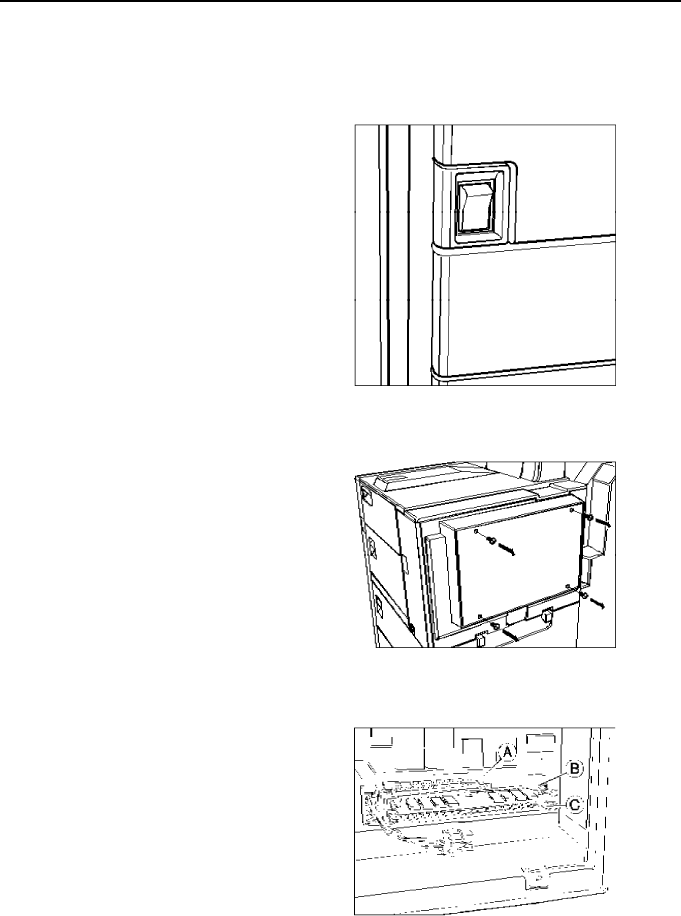

Installing DRAM SIMM Modules
Follow these steps to install DRAM SIMM modules.
1
Turn off the machine power the
machine and unplug the power
cord.
2
Disconnect the parallel cable and the network cable as needed.
3
Remove the four coin screws that
secure the cover of the controller
board on the back of the machine.
4
Remove the controller board cover.
5
Identify the sockets where you can
install DRAM SIMM modules.
Sockets “B” and “C” can accept
DRAM SIMM modules. Socket “A”
can accept a PostScript
®
ROM
DIMM module only.
Note: Socket “B” already has a DRAM SIMM module installed in it. To increase
memory size, insert a DRAM SIMM module into Socket “C”. If you need
to increase memory even further, replace the DRAM SIMM modules in
Socket “B” and Socket “C” with larger capacity DRAM SIMM modules.
