TROUBLESHOOTING
5-14

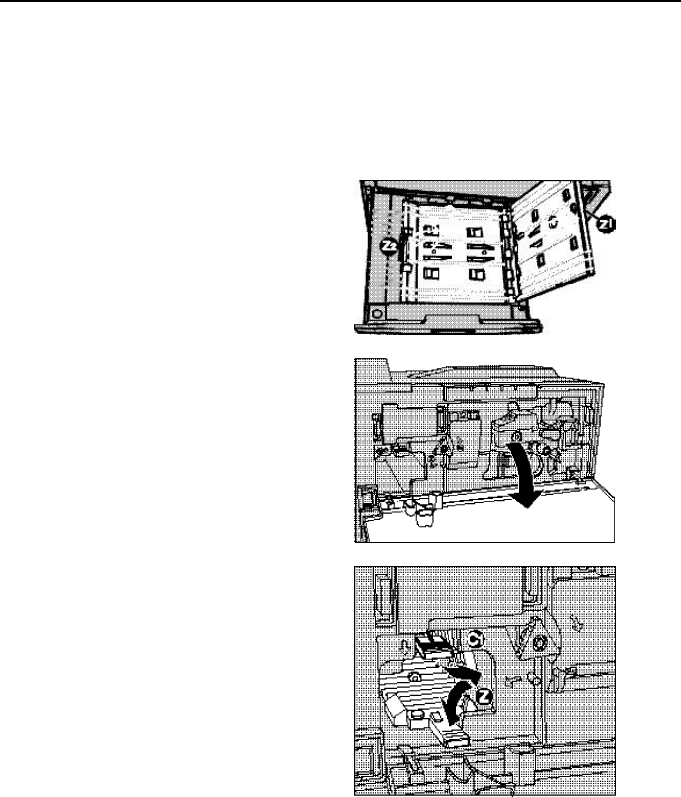

Clearing Misfeeds from Area Z
Follow these steps to clear a paper misfeed from Area Z.
1
Open the Duplex Tray.
2
Pull up the handles labeled “Z1”
and “Z2” and remove any misfed
paper.
3
Open the Front Cover of the printer.
4
Move the blue-edged lever “Z” down
to the left.
5
Move the blue-edged lever “C1” down and to the right.
6
Inspect the area inside the printer and remove any misfed paper.
