5 REV 92207-20110916
ENGLISH 92207
(1) 2” Ball Coupler – For towing the log splitter behind
your vehicle.
(2) Hydraulic Cylinder – 4” bore (10.16 cm) x 22.63”
(57.5 cm) stroke. Rated to 3500 psi.
(3) Mounting Plates – Holds hydraulic cylinder in
place.
(4) Control Valve Handle – Controls the movement of
the cutting wedge.
(5) Wedge
(6) Splitting Beam
(7) Engine – 196cc, OHV, 4-stroke, air cooled.
(8) Tires – Maximum travel speed is 45 MPH (72 KPH).
(9) Hydraulic Fluid Filter
(10) Hydraulic Pump – Pumps hydraulic oil through the
system.
(11) Beam Bracket – Holds splitting beam in place.
(12) Support Leg – Supports log splitter while
operating. Raise leg for towing.
(13) Safety Chains – For use while towing.
(14) Auto Stop Pin (ASP) – Limits the return stroke of
the splitting wedge.

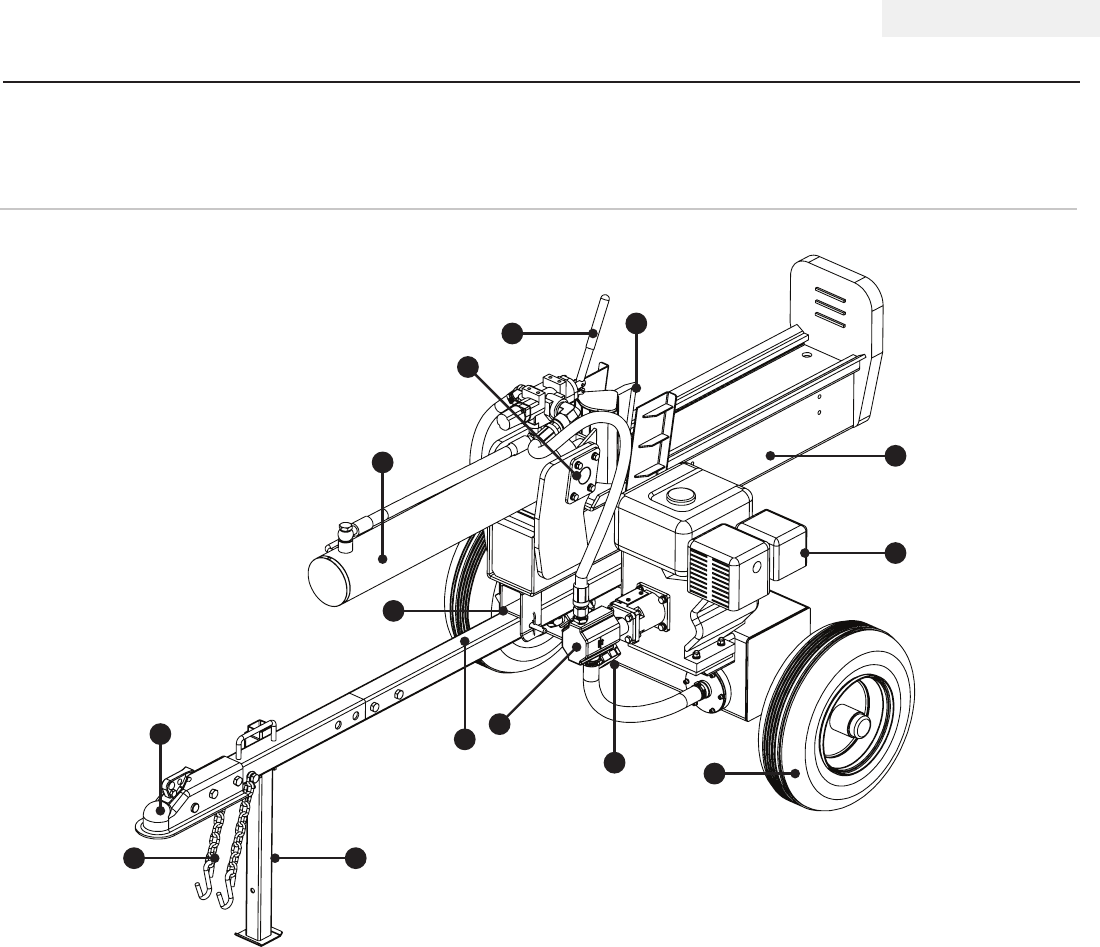

Log Splitter
CONTROLS AND FEATURES
Read this owner’s manual before operating your log splitter. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.
1
2
5
9
6
7
12
8
13
4
3
10
11
14
