[ Installation ]
18
1
2
3
4
5
HORIZON
SKY
SOUTH
WEST EAST
NORTH

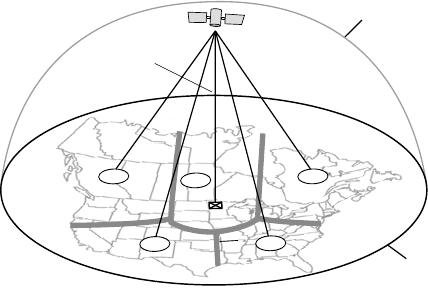

Use the map to find the area you are located in (1 to 5). Then find the direction in which you
need to have a clear view of the sky:
Area 1: You will need a location with a clear view of the sky facing EAST or NORTHEAST
or SOUTHEAST
Area 2: You will need a location with a clear view of the sky facing NORTH or NORTH
-
EAST
Area 3: You will need a location with a clear view of the sky facing NORTH or NORTH
-
WEST
Area 4: You will need a location with a clear view of the sky facing WEST or
NORTHWEST or SOUTHWEST
Area 5: You will need a clear view of the sky facing STRAIGHT UP (Outdoors only, refer
to Figure 6)
The location for the antenna must have an unobstructed view of the sky in the direction indi-
cated for your area. (Figure 9)
Figure 8Figure 8
