DX-IPDR3
11

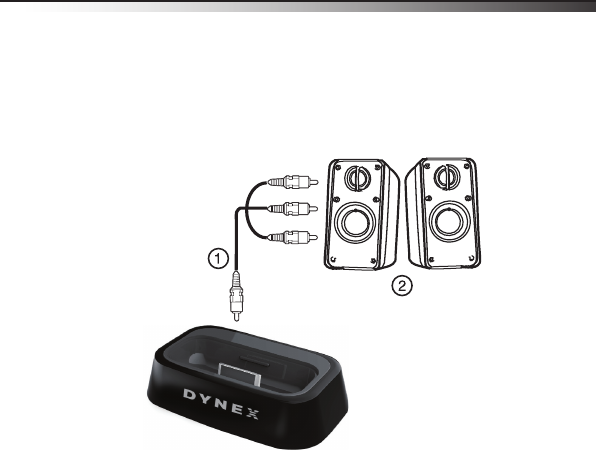

Connecting a sound system
To connect a sound system:
1 Connect the end of the included one-to-three AV cable that has a
single plug to the AV jack on the back of the dock.
2 Connect the red and white plugs on the one-to-three AV cable to
the audio jacks on the sound system. Do not connect the yellow
video plug.
Note: The cables are color coded. Connect the red cable connector to
the right audio jack, and connect the white cable connector to the left
audio jack. Do not connect the yellow cable connector.
DX-IPDR3_11-1053_Man_V3_EN.fm Page 11 Thursday, September 22, 2011 8:50 AM
