iPod®/iPhone® Audio/Video Dock with Remote Control
Connecting to a TV
You can connect a TV to the dock using the one-to-three composite
audio/video cable.

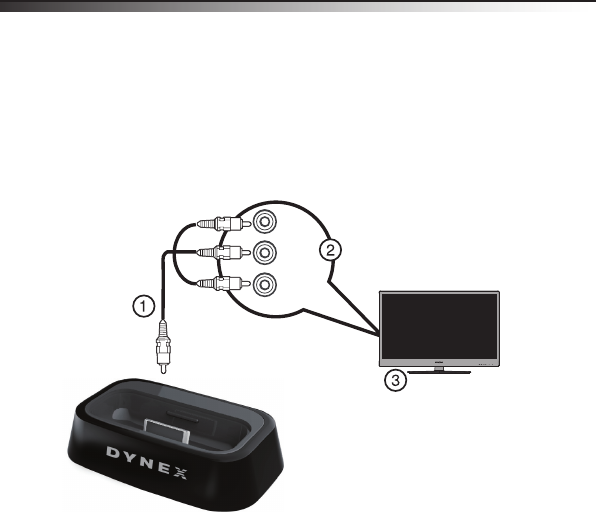

To connect a TV:
1 Connect the end of the included one-to-three AV cable that has a
single plug to the AV jack on the back of the dock.
2 Connect the other end of the video cable to the composite AV
jacks on the TV.
Note: The cables are color coded. Connect the yellow cable connector
to the yellow video jack, the red cable connector to the right audio
jack, and connect the white cable connector to the left audio jack.
Video
L
R
Audio
