Cabling Your Cluster Hardware 17

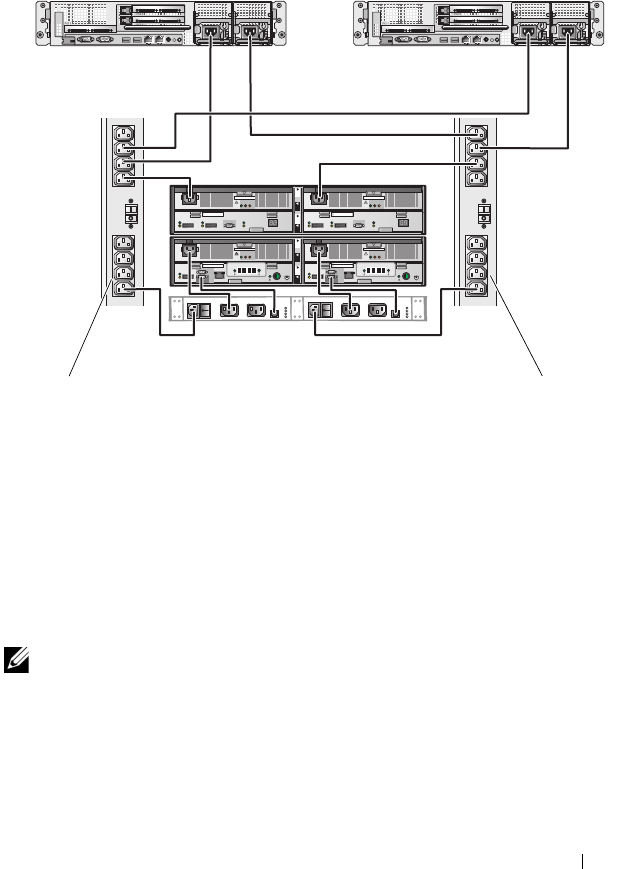

Figure 2-2. Power Cabling Example With Two Power Supplies in the PowerEdge
Systems and Two SPS(s) in an AX4-5 Storage System
Cabling Your Cluster for Public and Private
Networks
The network adapters in the cluster nodes provide at least two network
connections for each node, as described in Table 2-1.
NOTE: To configure Dell blade server modules in a Dell PowerEdge cluster, see the
Using Dell Blade Servers in a Dell PowerEdge High Availability Cluster document
located on the Dell Support website at support.dell.com/manuals.
A
B
A
B
0 Fibre 1Fibre 0 Fibre 1Fibre
A
B
A
B
primary power supplies
on one AC power strip
(or on one AC PDU [not
shown])
redundant power supplies
on one AC power strip (or
on one AC PDU [not
shown])
