Crestron Adagio™ AAE Audio Expander

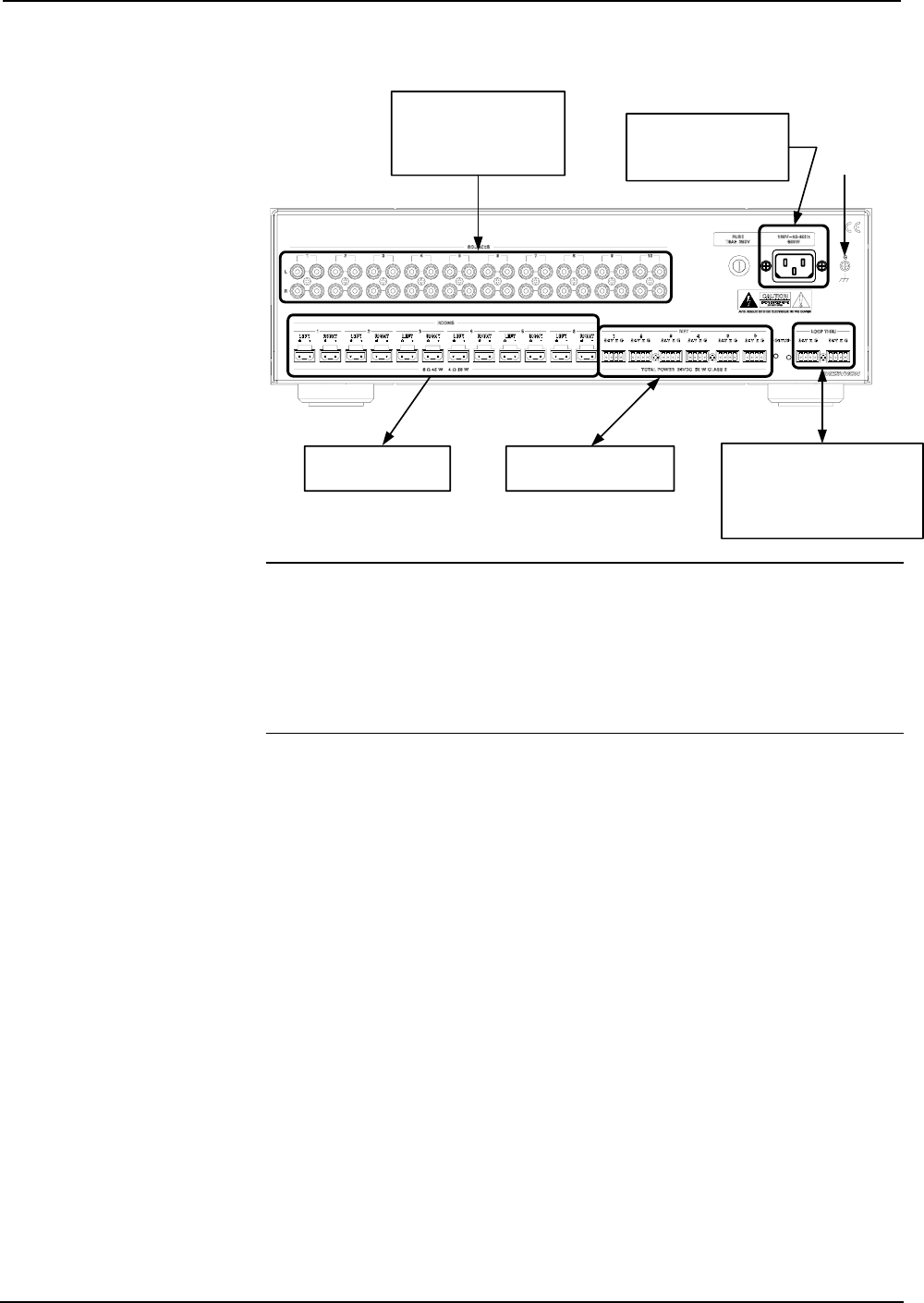

Hardware Connections for the Adagio AAE Audio Expander
AUDIO INPUTS:
FROM AUDIO SOURCE
AND OPTIONAL AUDIO
SOURCE LOOP-THRU
POWER:
120VAC~7.0A (AAE)
230VAC~3.5A (AAEI)
GROUND
AUDIO OUTPUTS:
ROOM SPEAKERS
CRESNET: FOR
KEYPADS AND APADS
LOOP THRU:
FOR AADS, AES OTHER
2-SERIES CONTROL
SYSTEM AND ADDITIONAL
AAE UNITS (UNPOWERED)
NOTE: The Adagio AAE Audio Expander is capable of distributing audio to a
maximum of six rooms. It is possible to expand your system to a maximum of
twenty-four rooms by adding multiple Audio Expanders.
NOTE: The AAEI (International version) requires a power cord that is harmonized
to the country’s national and local electrical code. Each inner wire in the cord should
be at least 16 AWG or 1.5 mm
2
and rated for at least 500V. The temperature rating
of the cord should be at least 60°C. The cord length should be 1.5 meters to 2 meters.
Operations Guide – DOC. 6460A Audio Expander: Adagio AAE • 7
