Your DAB/FM Radio 1-1
1Yo u r DA B / F M R a d i o
Controls, Jacks and Elements Function
1. TUNING knob Turn to select options, scan or switch stations and select ensembles. Press to confirm selection or activate a
function.
2. Liquid Crystal Display (LCD) Backlit display
3. Headphone jack Connect stereo headphones with a 3.5 mm (1/8-inch) stereo plug to this jack.
4. AUX IN jack Connect an external device such as a CD, MP3 or MiniDisc player to this jack with a 3.5 mm stereo-to-stereo
cable.
5. Power connector Connect the power adapter to this connector.
6. Antenna connector You may disconnect the provided telescopic antenna and install your outdoor antenna to this connector for
better reception. Consult your dealer for more information, if necessary.
2
3
4
This chapter describes and shows
you the location of the various
controls, jacks and elements on
your SoundWorks 500DAB.

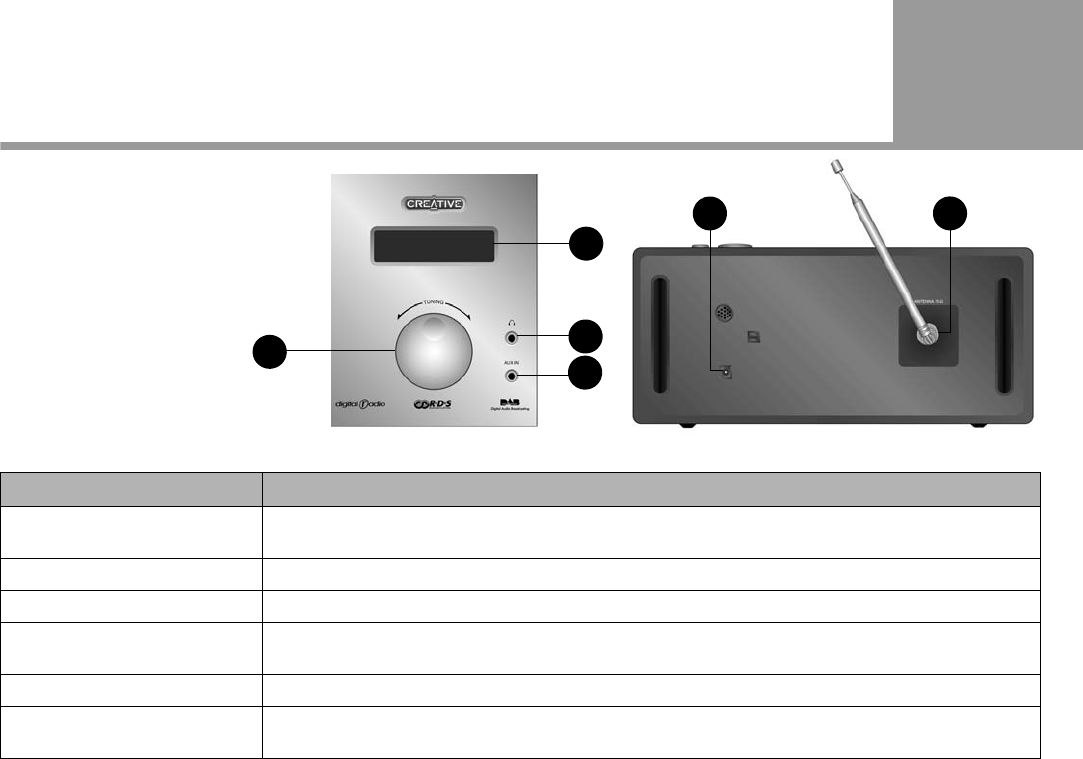

Figure 1-1: Front panel controls and rear panel view
1
5
6
