Installation
•
Notes:
- Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
- Before finally installing the unit,
connect the wiring temporarily and
make sure it is all connected up
properly and the unit and the system
work properly.
- Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
- Consult with your nearest dealer if
installation requires the drilling of
holes or other modifications of the
vehicle.
- Install the unit where it does not get
in the driver's way and cannot injure
passengers if there is a sudden stop,
like an emergency stop.
- If the installation angle exceeds 30°
from horizontal, the unit might not
give optimum performance.
- Avoid installing the unit where it will
be subject to high temperature, such
as from the heater, or where it will be
subject to dust, dirt or excessive
vibration.
•
DIN Front/Rear-mount
This unit can be properly installed either
from the “Front” (conventional DIN
Front-mount) or “Rear” (DIN Rear-mount
installation, utilizing threaded screw
holes at the sides of the unit chassis).
For details, refer to the following
illustrated installation methods.

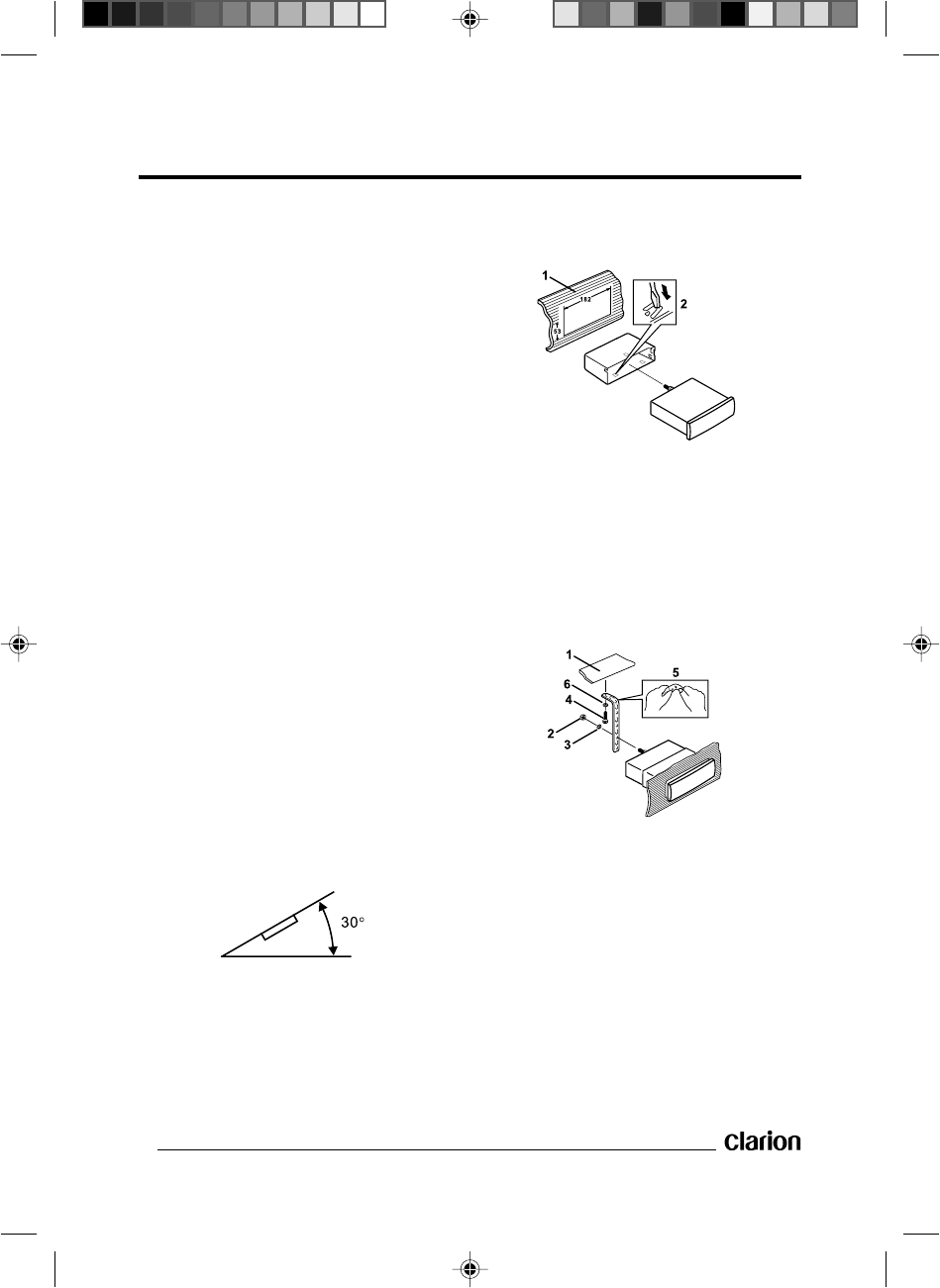

- DIN Front-mount (Method A)
Installing the unit
1. Dashboard
2. Holder
After inserting the holder into the
dashboard, select the appropriate
tabs according to the thickness of the
dashboard material and bend them
inwards to secure the holder in place.
1. Dashboard
2. Hex nut (M5)
3. Spring washer
4. Hex washer head tapping screw
(M5×18)
5. Strap
Be sure to use the strap to secure the
back of the unit in place. The strap
can be bent by hand to the desired
angle.
6. Plain washer
