TD-W8970
300Mbps Wireless N Gigabit ADSL2+ Modem Router User Guide

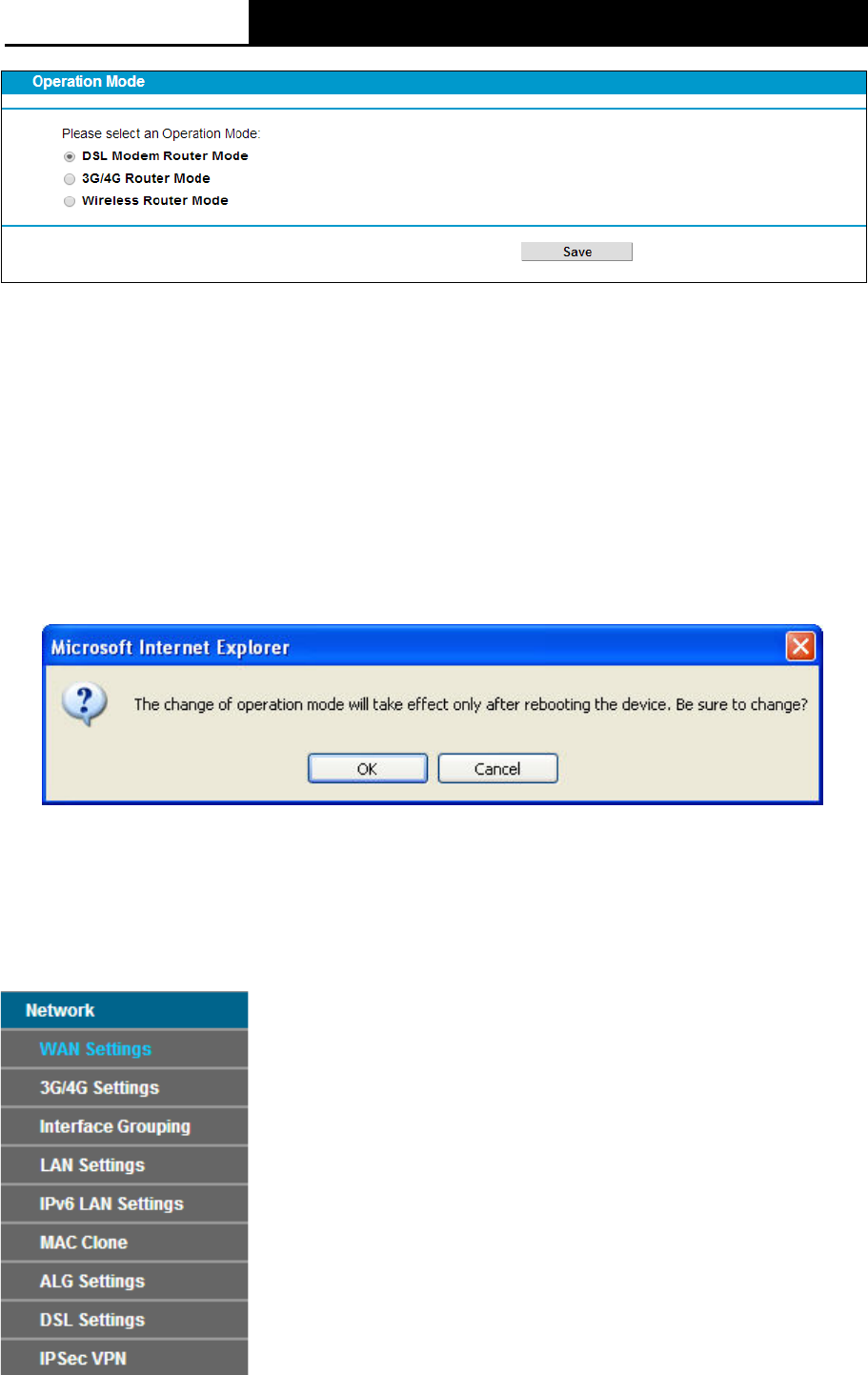

Figure 4-2
DSL Modem Router Mode: In this mode, the device enables multi-users to share Internet via
ADSL using its ADSL port and share it wirelessly at 300Mbps wireless 802.11n speeds.
3G/4G Router Mode: In this mode, the device allows multi-users to share a 3G/4G mobile
broadband connection via wired or wireless connection.
Wireless Router Mode: In this mode, the device enables multi-users to share Internet via
Ethernet WAN (EWAN) using its interchangeable LAN/WAN port and share it wirelessly at
300Mbps wireless 802.11n speeds.
After you click the Save button, the Note Dialog will appear. Click OK and then the modem router
will reboot. Please wait.
Note Dialog
4.5 Network
Choose “Network”, there are many submenus under the main menu. Click any one of them, and
you will be able to configure the corresponding function.
17
