TD-W8970
300Mbps Wireless N Gigabit ADSL2+ Modem Router User Guide
1.3 Panel Layout
1.3.1 The Front Panel
Figure 1-1

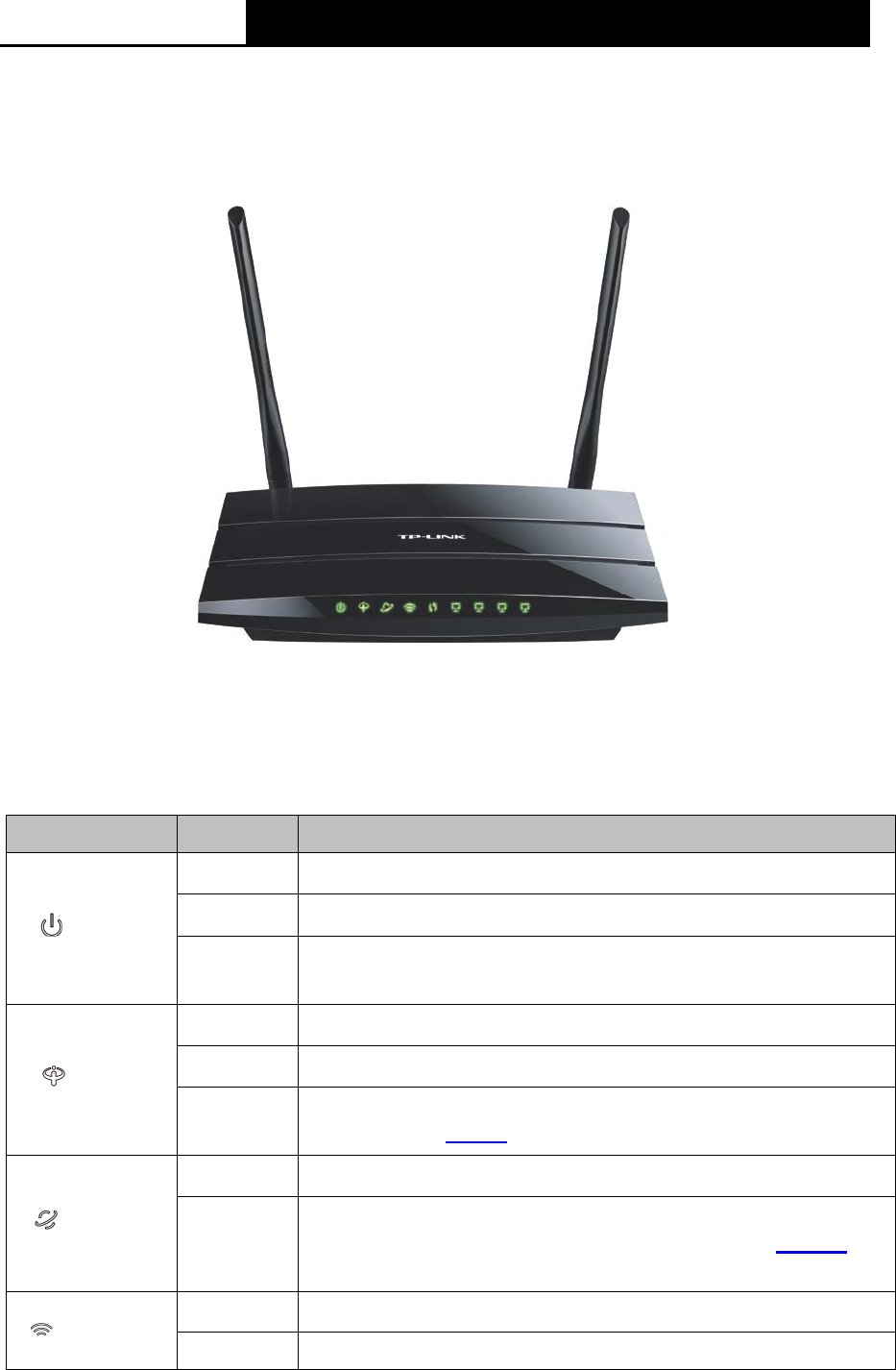

The modem router’s LEDs are located on the front panel (View from left to right). They indicate the
device’s working status. For details, please refer to LED Explanation.
LED Explanation:
Name Status Indication
(Power)
On
System start-up complete.
Flash
System starting up or device updating.
Off
The modem router is off. Please ensure that the power adapter is
connected correctly.
(ADSL)
On
ADSL line is synchronized and ready to use.
Flash
The ADSL negotiation is in progress.
Off
The ADSL port is not connected or ADSL synchronization fails.
Please refer to Note 1 for troubleshooting.
(Internet)
On
The network is available with a successful Internet connection.
Off
There is no successful Internet connection or the modem router
is operating in Bridge mode. Please refer to Note 2
for
troubleshooting.
(Wireless)
On Wireless is enabled.
Off Wireless is disabled.
