Syn-Tech III P25 Portable Radio
OPERATION MANUAL
680-090-2041
Version 5.0
http://www.midlandradio.com
16
4.1.3 Selecting Channels
The channel switch provides direct access
to channels one through fifteen. When the
channel switch is in the sixteenth position
any channel in the zone may be selected
using the up/down keys or alpha-numeric
keypad.
While the channel switch is in the sixteenth
position, the (up/down)
keys may be used to increment or
decrement the channel selection.
While the channels switch is in
the sixteenth position, the
(alpha-numeric)
keypad may be used to enter a
channel number for direct
channel selection.
Enter channel
number
Press OK

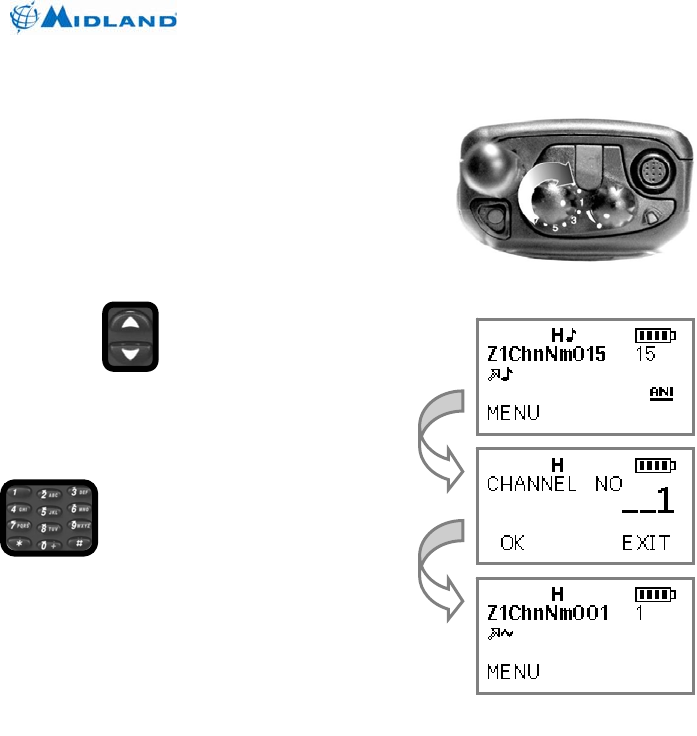

Figure 4.7 – Direct channel number entry
Figure 4.6 – Channel switch selection
