CHAPTER 7
Floor Mount
The MLB-UPJ can also be used to mount the UPJ-1P on
the oor or stage lip, which is useful for monitoring or front-
ll applications, for example (Figure 7.8).

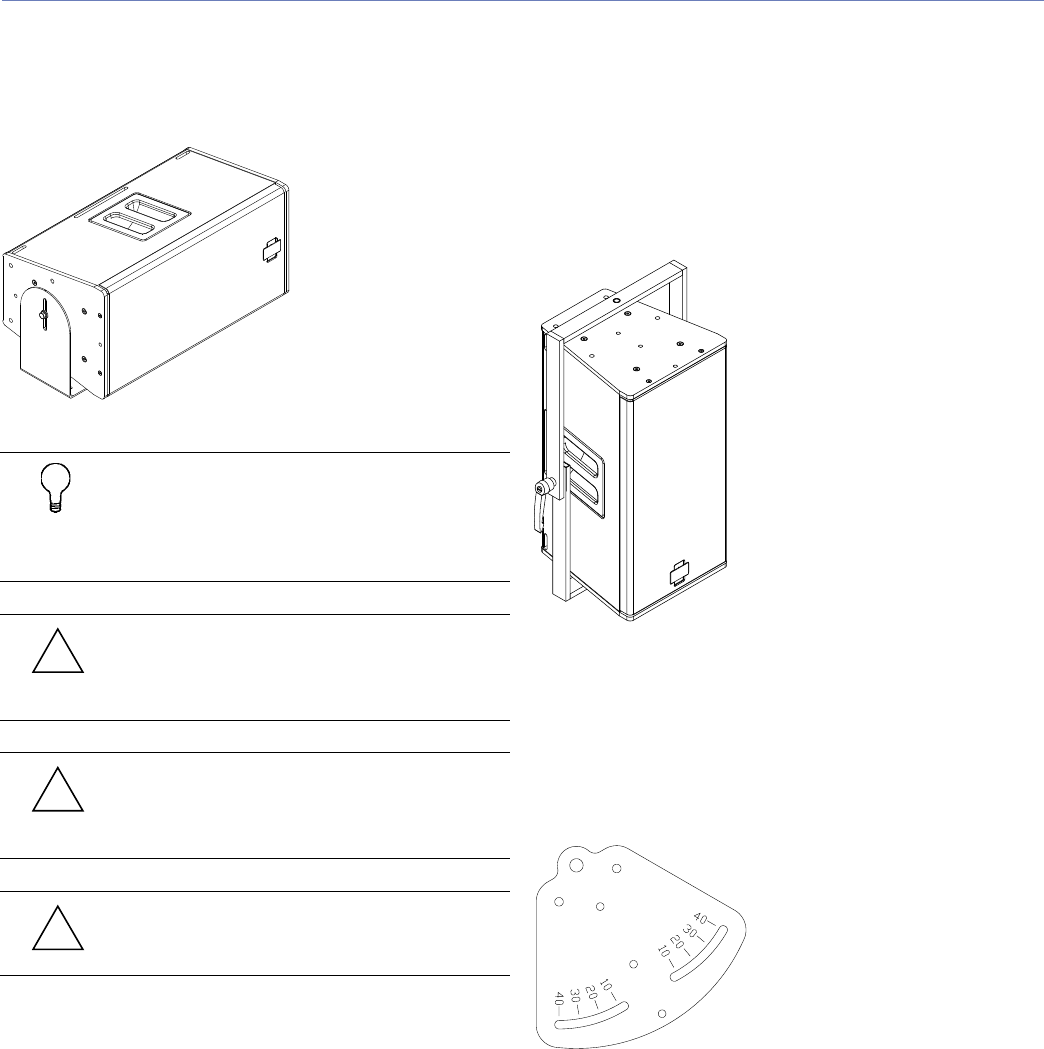

Figure 7.8. Floor-mounting the UPJ-1P
TIP: In any conguration, the MLB-UPJ’s
adjustment slot can be used to increase or
decrease the distance to the mounting surface and
achieve the desired angle of the UPJ-1P.
CAUTION: Always use mounting hardware
appropriate for the construction of the
surface where the MLB-UPJ will be installed.
CAUTION: Always use mounting and rigging
hardware that has been rated to meet or
exceed the weight being hung.
CAUTION: Make sure that the eyebolts and
bolts are tightened securely.
MYA-UPJ MOUNTING YOKE ASSEMBLY
This cradle-style mounting yoke (Figure 7.9) suspends a
single UPJ-1P loudspeaker and allows a wide range of
horizontal and vertical adjustment. The MEP-UPJ end plate
attaches to the MYA-UPJ's bar using two M8 mounting
screws (included). A hanging clamp (“C” or “G” type) and
a steel safety cable are required to enable the yoke to be
used (not supplied as a part of the yoke assembly kit).
Figure 7.9. The MYA-UPJ is used to suspend a single UPJ-1P cabinet
USING THE MAA-UPJ ARRAY ADAPTER
The MAA-UPJ array adapter (Figure 7.10) allows you to in-
stall multiple UPJ-1Ps in both horizontal and vertical arrays.
The kit includes two plates, eight M8 screws and rubber
washers.
Figure 7.10. MAA-UPJ array adapter
