REV 92221-20130425 20
92221 ENGLISH
Engine Oil
Use 10W-30 automotive oil.
Oil capacity is 0.63 qt (0.6 L).
DO NOT OVERFILL.

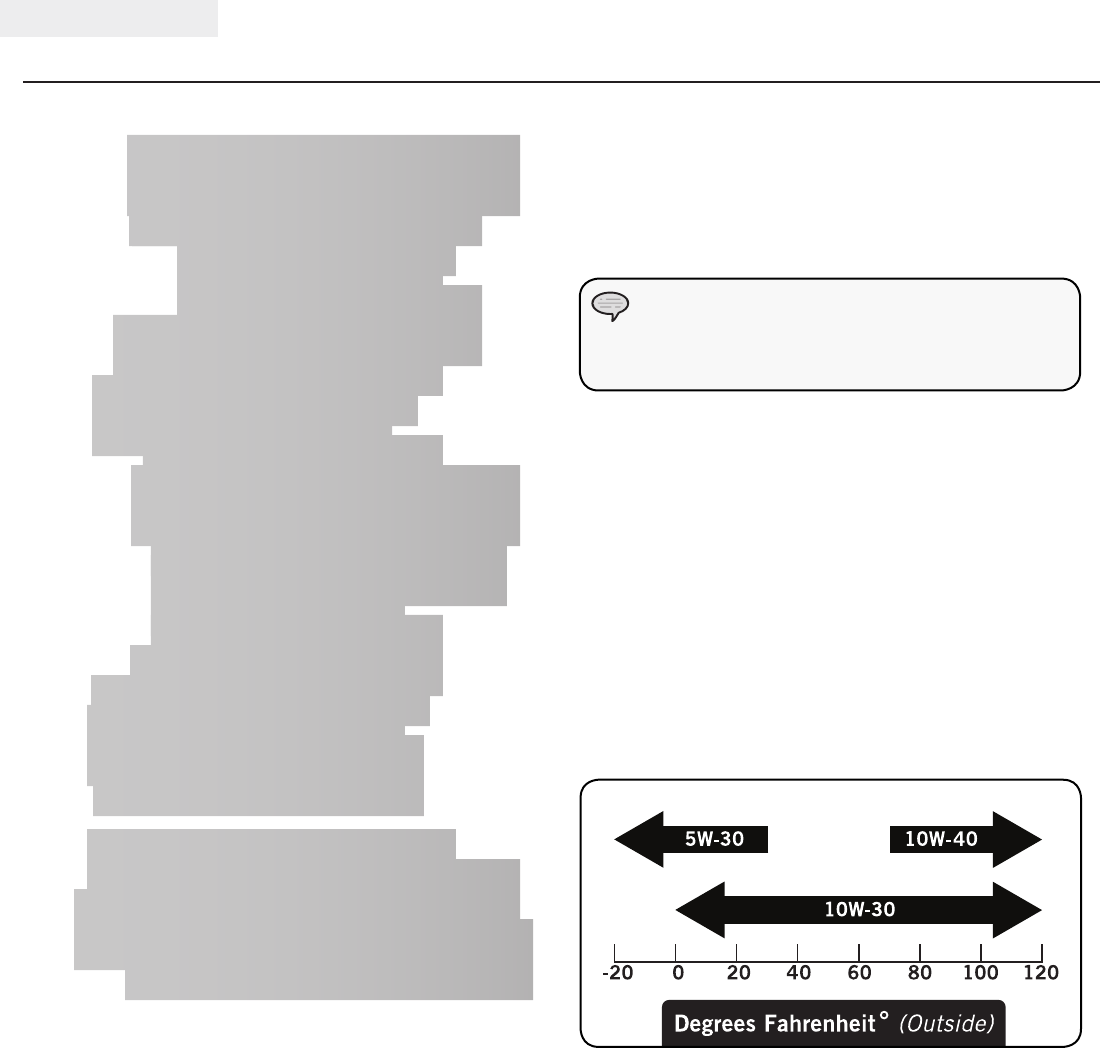

Please reference the following chart for recommended
oil types for use in the log splitter.
Fuel
Fuel capacity is 0.93 gallons (3.5 L). Use regular
unleaded gasoline with a minimum octane rating of 85
and an ethanol content of less than 10% by volume.
Hydraulic Oil System
Oil capacity is 6.5 gallons (24.6 L).
Use types 10W AW32, ASLE H-150, ISO32 or universal
hydraulic fluid.
Spin-On Filter – 15GPM, 10 Micron, ¾-16 Thread.
Log Splitter Specifications
– Ram Force ........................22 Ton
– Cycle Time ..................... 14 seconds
– Hydraulic Tank Capacity .......... 5 gal (18.9 L)
– Max Log Length ............23.8 in. (60.3 cm)
– Max Log Weight .............. 100 lb. (45 kg)
– Coupler Ball Size .................2 in. (5 cm)
– Tire Size ...................16 in. (40.6 cm)
– Max towing speed ........... 45 MPH (72 KPH)
– Engine .................196 cc, OHV, 4 stroke
– Cylinder size .... 4 in. x 22.6 in. (10 cm x 57.5 cm)
– Cylinder rod size .............. 1.57 in. (4 cm)
– Gear Pump ........................2-stage
– Max pressure .....................3500 psi
– Max flow capacity .................. 11 GPM
– Control Valve ............. Detent (auto-return)
– Overall Dimensions
– Gross Weight ................429 lb. (195 kg)
– Net Weight ................. 396 lb. (180 kg)
– Height .................. 45.9 in. (116.5 cm)
– Width ..................40.8 in. (103.5 cm)
– Length. . . . . . . . . . . . . . . . . . . .85.8 in. (218 cm)
SPECIFICATIONS
When temperature is below 32º F (0º C) use
universal tractor/transmission fluid.
NOTE
Engine Specifications
– Model ......................YF168F-2-001
– Displacement ......................196 cc
– Type ........................4-Stroke OHV
– Start Type .........................Recoil
Maintenance Valve Clearance
– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)
– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Note: Tech bulletin regarding the valve adjustment
procedure is on www.championpowerequipment.com.
Spark Plugs
OEM spark plug: NHSP F6RTC
Replacement spark plug: NGK BPR6ES or equivalent
Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
An Important Message About Temperature
Your Champion Power Equipment product is designed
and rated for continuous operation at ambient
temperatures up to 40°C (104°F). When your product is
needed your product may be operated at temperatures
ranging from -15°C (5°F) to 50°C (122°F) for short
periods. If the product is exposed to temperatures
outside this range during storage, it should be brought
back within this range before operation. In any event,
the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and
other vents.
