Controls and Features

Rev 65521-20090226 5

Controls and Features

Read this owner’s manual before operating your water pump. Familiarize yourself with the

location and function of the controls and features. Save this manual for future reference.

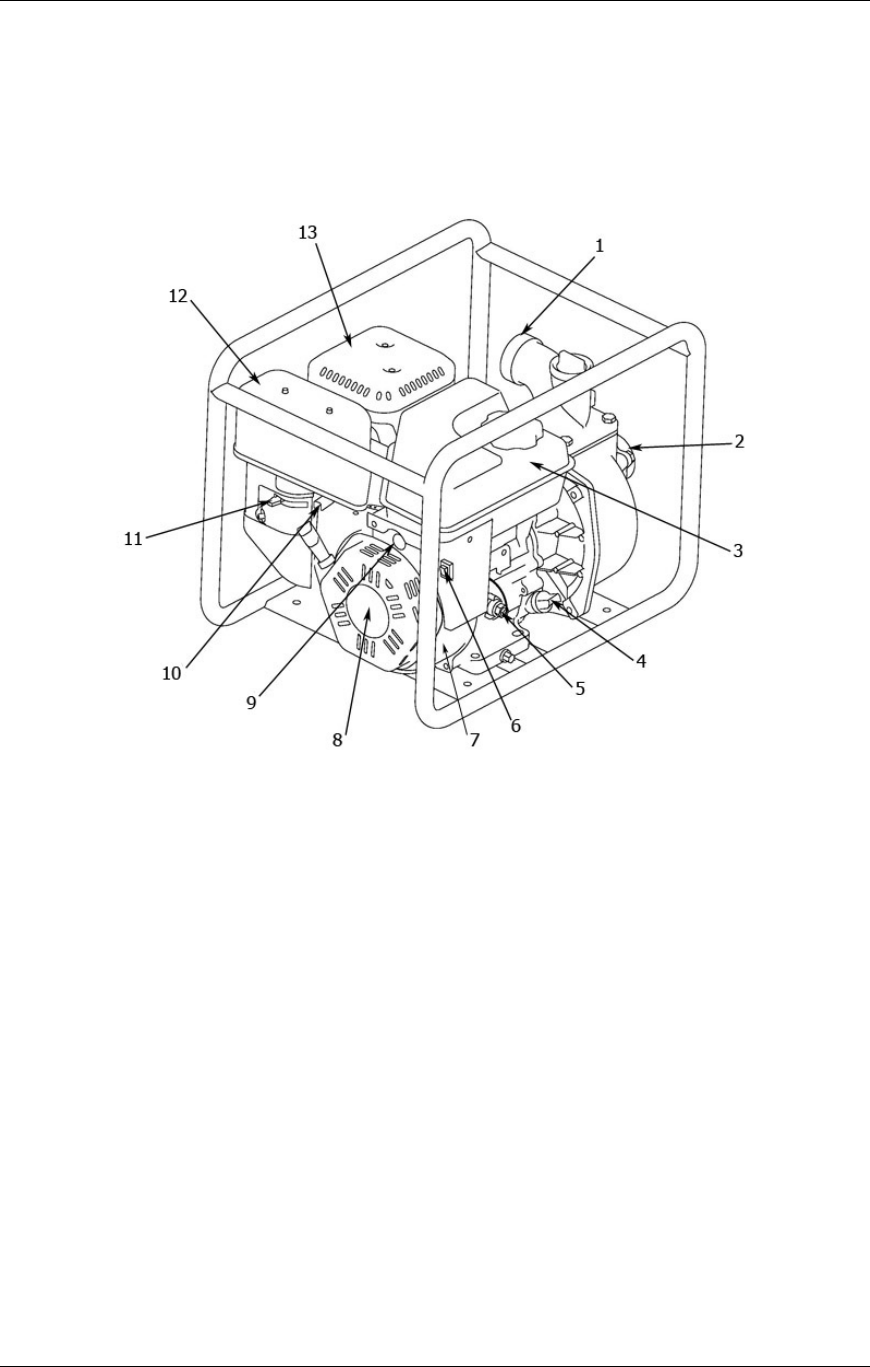

Water pump

(1) 3” Outlet – 3” NPT outlet connector

(2) 3” Inlet – 3” NPT inlet connector

(3) Fuel Tank – 0.92 gallon (3.5 L)

capacity fuel tank

(4) Oil Filler Cap – Check and fill engine

oil level

(5) Low Oil Sensor– Senses the level of oil

in the crankcase and shuts the engine down

if the level falls too low

(6) Engine Switch – Used to start the

engine

(7) Serial Number

(8) Recoil Starter – Used to start the

engine

(9) Fuel Valve knob

(10) Throttle – Used to adjust engine

speed

(11) Choke Lever – Used to start the

engine

(12) Air Filter – Protects the engine by

filtering dust and debris from the intake air.

(13) Muffler
