AC Outlet Power Supply
You can power your CD player with an
AC/DC adapter. Refer to the table for
details of the operating voltage.
AC/DC adapter is purposed for indoor use
in dry rooms only. Remove the jack from
the device to use it with the batteries.
Battery Power Supply
Refer to the table for details of the
batteries required to operate your unit.
Recharge function
To charge Ni-Cd / Ni-MH batteries:
1. Insert 2 rechargeable batteries into
the battery compartment on the main
unit.
2. Connect the main adapter.
3. Press and hold stop on the unit to
start recharging. An battery indicator will
be displayed when recharging is in
progress.
4. Unplug the AC/DC adapter to stop
recharge, or press play to stop recharge
and enter playback mode directly.
CD Player
Model Number
PDP2075
AC/DC adapter
5-4079A
(Included)
(230V 50Hz)
Batteries
2 x 1.5V IEC R6 (UM3)
(Included)
Power Supply
4
3
Note:
Power is fed to the unit even
when it is not functioning. To
cut the power supply off, the AC/DC
adapter must be unplugged.

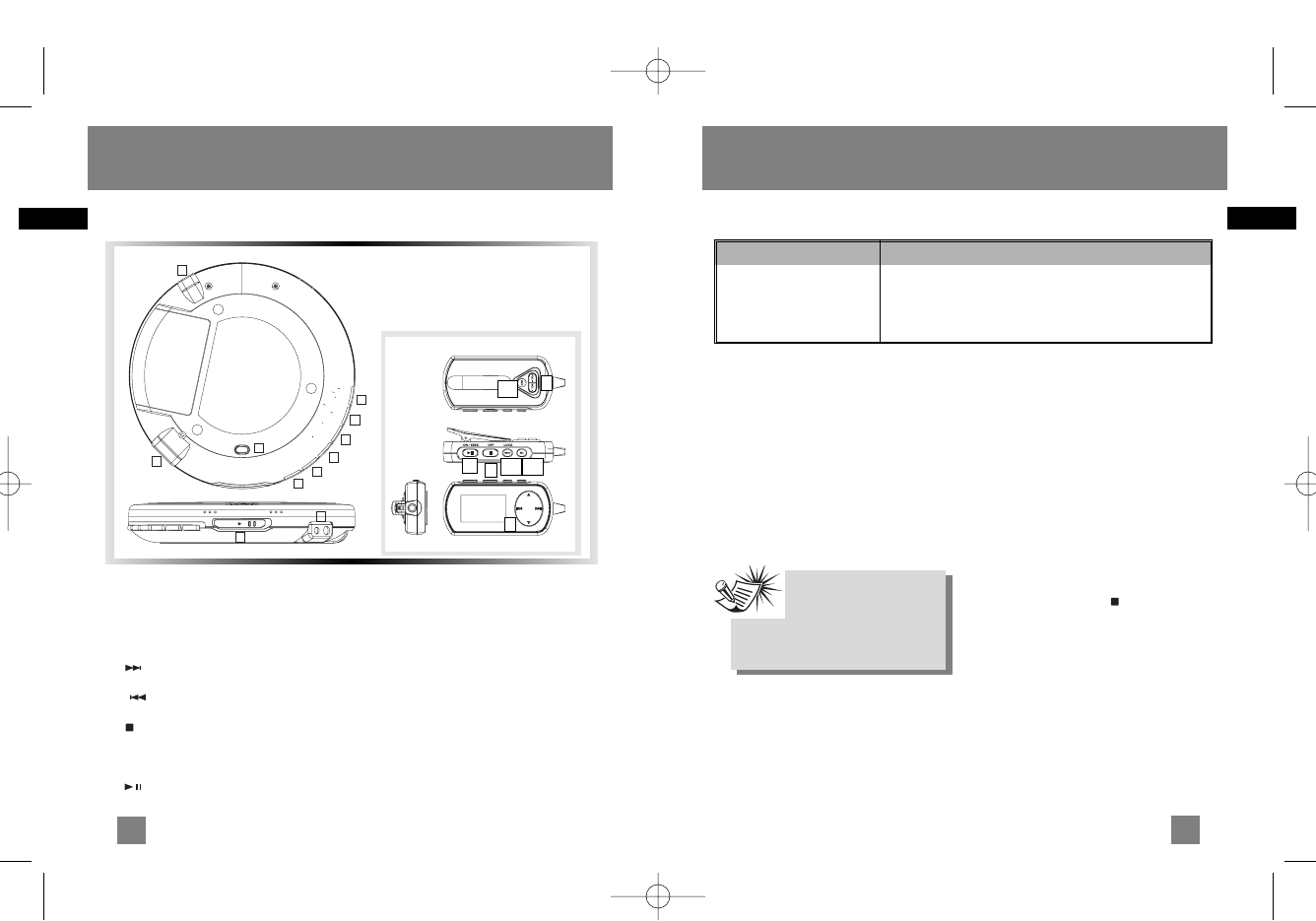

1. controls switch - To lock or unlock the
buttons.
2. DC jack - You can insert the adapter instead
of batteries for indoor use.
3. Remote Jack - Insert your remote here.
4. Volume buttons - To adjust the volume.
5. tune up - Skip / search forward track;
search up radio frequency.
6. tune down - Skip / search backward
track; search down radio frequency.
7. stop button - Press to stop CD playback,
press and hold to turn off the unit. In stop
mode, press and hold to activate recharge
function.
8. play/pause button - Press to play or
pause CD.
9. Directions button - access different option
in the option menu; enter / exit a folder.
10. menu•lock button - press to enter / exit
option menu, press and hold to activate key
lock function.
11. sel button - select the highlighted option.
12. DSP button - For different EQ selection.
13. open switch - Slide to open CD door.
CD Player
General Control
HOLD • • ON
O
P
E
N
O
N
CONTROLS
OFF
R
E
C
H
A
R
G
E
CD/FM
S
E
E
K
U
P
TUNE
TUNE
D
O
W
N
8
7
6
5
1
OPEN
OPEN
4
4
13
3
2
3
8
4
7
10
9
11
12
