1212
Connecting to
the F80
This section shows
how to connect
external devices
to your F80.

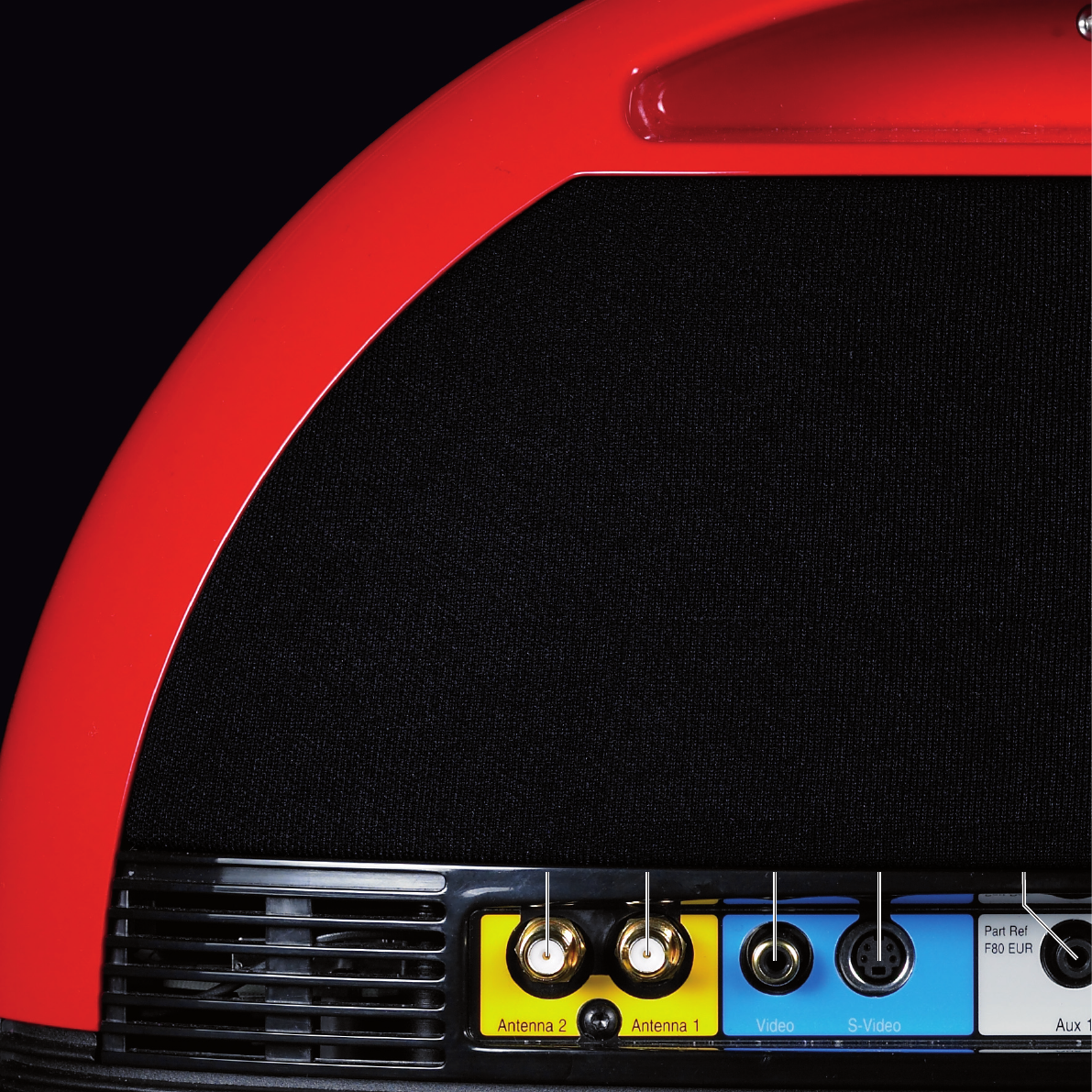

Connecting an antenna
Connect up to two external antennas for
the radio to Antenna 1 or Antenna 2.
For more information see Connect an
antenna, page 3.
•
Connecting to a
television or video display
Connect the Video connector to a display
with a composite video input, such as a
television.
Connect the S-Video output to a display
with an S-Video input, such as a television
or monitor.
•
•
External
analogue
source
Display with
S-Video
input
Display with
composite
video input
External
rod or wire
antenna
Second
external
antenna
