XR650-CXi SPECIFICATIONS:
Woofers:Mineral-filled polypropylene cone body,
1-inch (25mm) voice coil,low-profile/symmetrical-
roll spider,butyl rubber surround.
Tweeters:1-inch (25 mm) aluminum dome
tweeter with rubber surround,neodymium
magnet,ferrofluid cooled and damped.
Adjustable tweeter angle.
Crossover Networks:2-way network with 1st
order low-pass circuit and 2nd order high pass
circuit. Premium Mylar Capacitors and Air-Core
inductors. 3-position adjustable tweeter output
level. 3-position midrange presence control.
Polyswitch™ tweeter protection.
Continuous Power Handling:
70 Watts (RMS Method)
Frequency Response: 48 Hz - 25 KHz (± 3 dB)
Efficiency @ 1W/1m:89.5 dB
Nominal Impedance:4 ohms
Included Components and Parts:
• Two XR650-CXi 6.50-inch (160 mm)
Coaxial Speakers
• Two XR650-CXpxo 2-Way Crossover Networks
• Two Metal Woofer Grilles and Grille Trays
• Butyl Adhesive Putty for woofer grilles
• Twelve #8 x 1 1/4 inch (30 mm)
Sheet Metal Screws
• Eight Mounting Clips
• Twelve Crimpable Fork Terminals
• Four Black Nylon Wire Ties
• Four 5-ft.(1.5 m) lengths of paired
speaker wire with female clips
GETTING STARTED:
•Turn off the audio system. It is also advisable
to disconnect the negative (-) terminal of
your vehicle’s battery whenever performing
installation work.
• Before cutting,drilling or inserting any screw,
check clearances on both sides of the planned
mounting surface. Also check for any potential
obstacles,such as window tracks and motors,
wiring harnesses,etc. Check both sides of the car,
many cars are not symmetrical!
• Always wear protective eyewear.
WARNING!
It is absolutely vital that your component
system is connected as shown in Diagram A
below. Failure to connect the system as shown
will result in damage to your speakers which is
NOT covered under warranty. Do not
substitute different crossover networks into
your XR650-CXi System. Only use crossover
networks clearly marked “XR650-CXpxo”.
2 JL AUDIO XR650-CXi
large terminal: (+)
small terminal: (–)

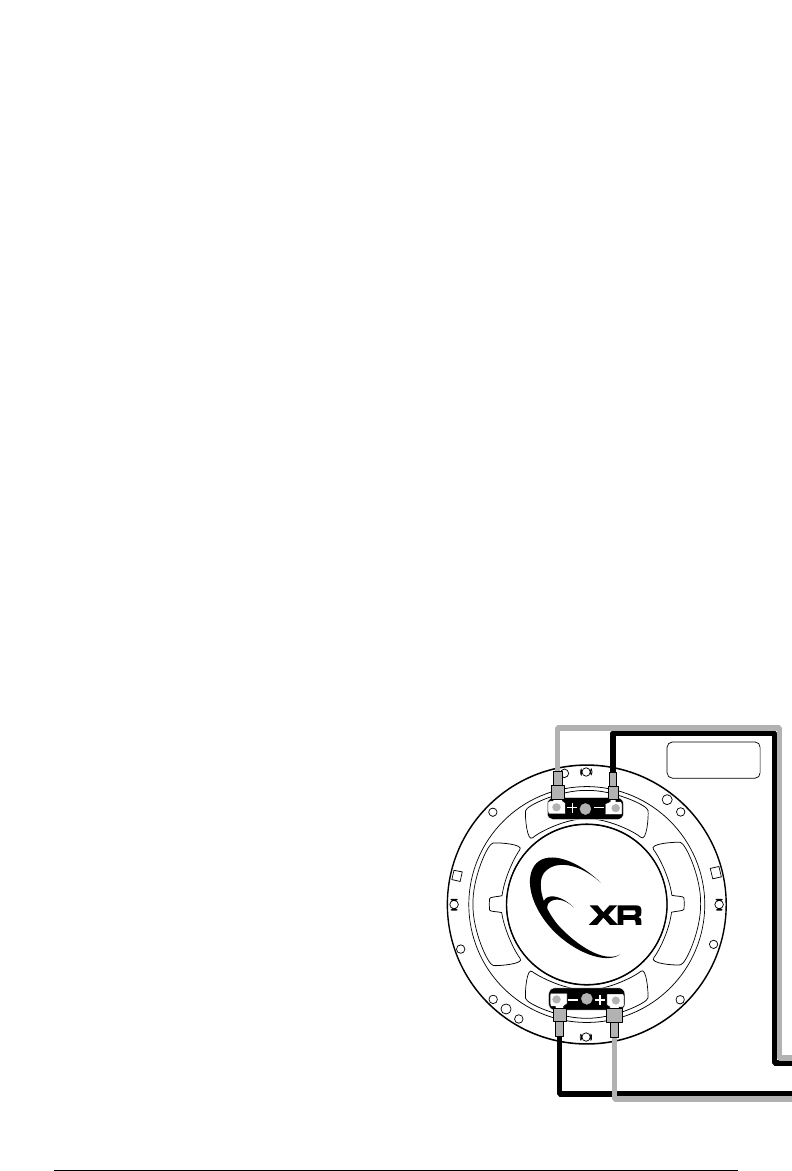

A) Wiring Diagram:
