SYSTEM CONNECTIONS
Always ensure when connecting cables, the DVD player, TV and any other electrical equipment
are turned off and not plugged into the AC outlet.
Ensure that you observe the colour coding when connecting audio and video cables.
Using the attached AUDIO and VIDEO cables
Insert the 3.5mm plug of the AUDIO cable into the AUDIO OUT jack on the DVD player and
insert the RED and WHITE plugs to your TV’s AUDIO IN jacks for audio output.
Insert the 3.5mm plug of the VIDEO cable into the VIDEO OUT jack on your DVD player and
insert the YELLOW plug to your TV’s VIDEO IN jack for video output.

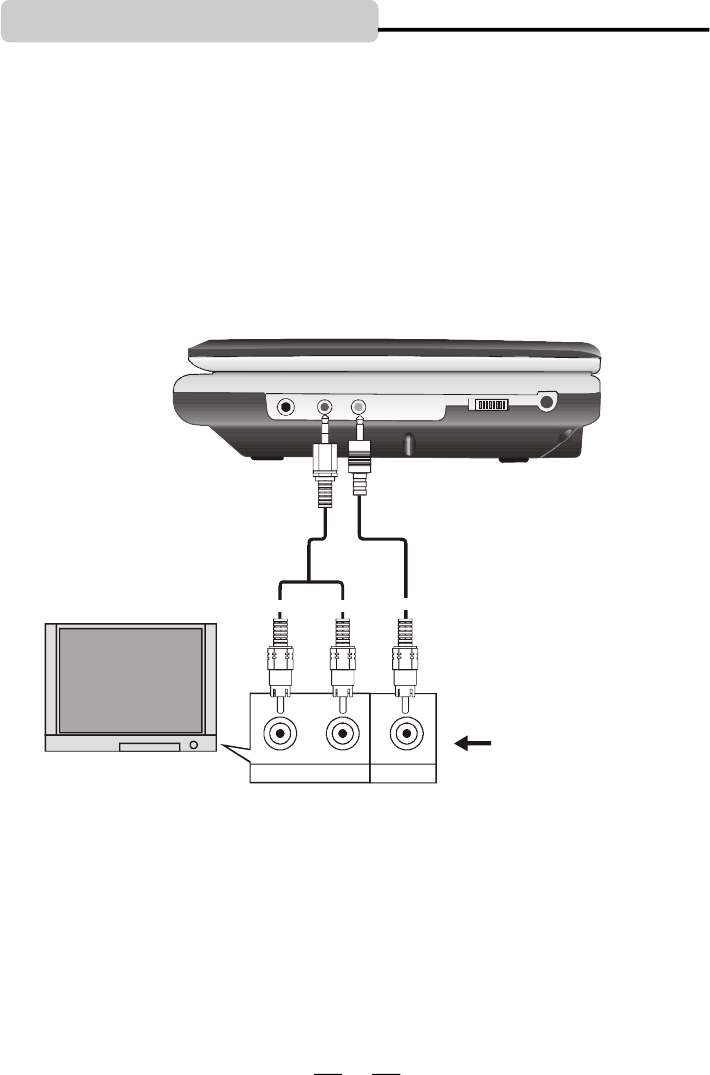

1. Connecting the DVD player to your TV
This DVD player can also be used to view movies on your larger screen TV. When viewing on
your TV, you may fold the screen down to shut off the TFT LCD display.
For TV Connection
Please follow the
cable plug colours.
18
YOUR TV
AUDIO IN
VIDEO IN
LR
YELLOW
WHITE
RED
