CONNECTIONS
Volume On/Off Control

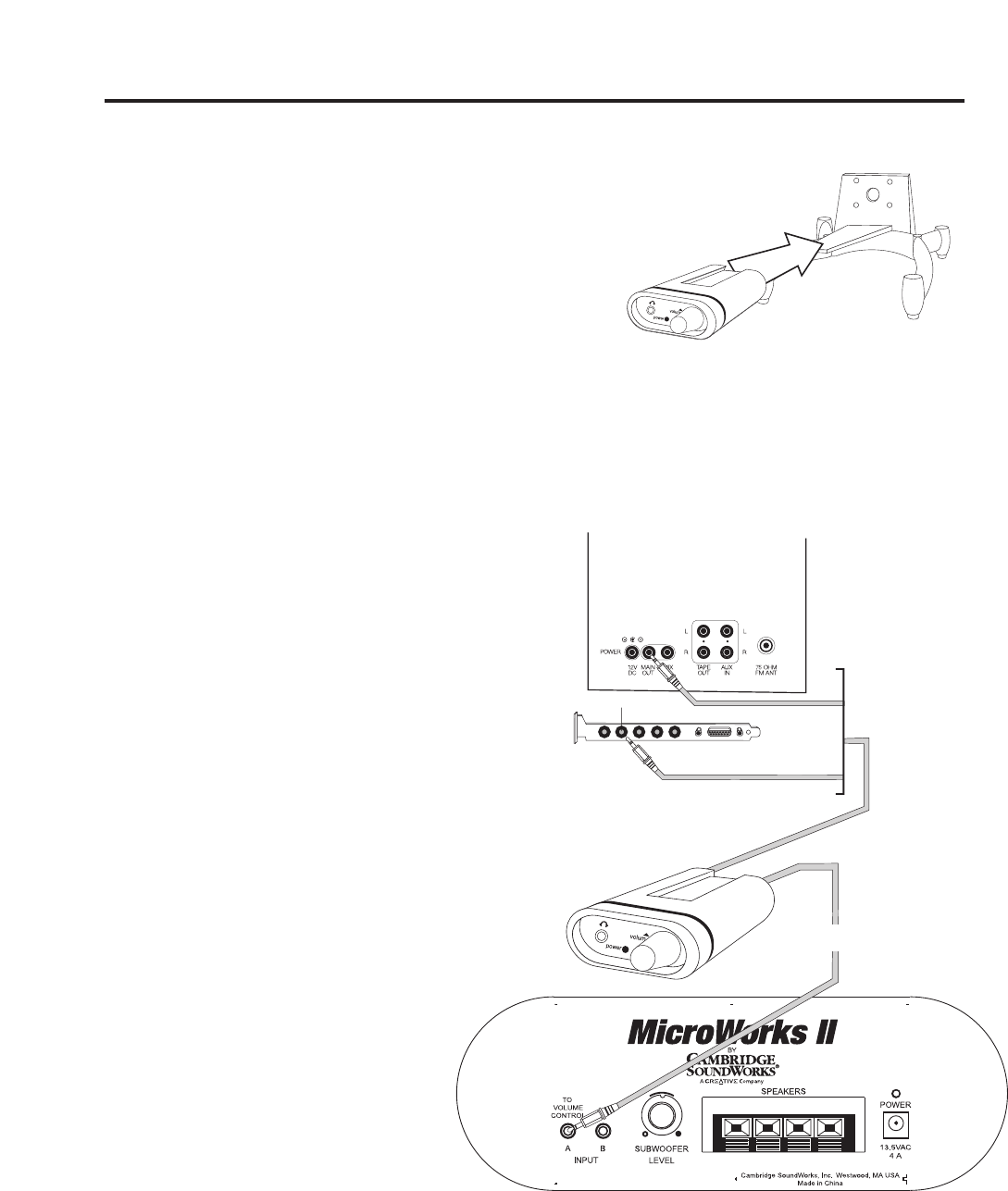

A) If you are using the Desktop Stand, slide the
Volume Control onto the support strut on one
of the stands.
B) The BLUE miniplug of the Volume On/Off Control
should be inserted into the subwoofer minijack “A”
labeled “TO VOLUME CONTROL.”
Signal Connections
C) The GREEN miniplug of the Volume On/Off Control
should be connected to your primary audio pro-
gram source.
INPUT B is a second audio input that blends with
INPUT A. Connect a second audio program source
here. For a source with a 3.5 mm minijack output (like
a headphone jack or line out jack on a portable CD
player), use a 2-meter signal cable with a 3.5 mm
miniplug at each end. Other sources may need a
cable with a 3.5 mm miniplug and two RCA plugs or a
3.5 mm stereo miniplug and 3.5 mm stereo minijack.
Headphones
Plug headphones with a 3.5 mm stereo miniplug into
the headphone jack of the Volume On/Off control.
Using headphones mutes the main speakers and
subwoofer.
The headphone jack on the Volume On/Off Control is
a direct connection to the signal Source. Headphone
output must be controlled at the signal source. The
speaker volume control does not affect the
headphone jack.
A
RL
--
R
++
AUDIO OUT
Computer sound card
Insert the
green
miniplug into
your primary music source’s
stereo minijack output (a sound
card, a stereo TV or a
Cambridge SoundWorks
MusicWorks)
MusicWorks
Connect the
blue
miniplug to INPUT A.
C
B
