Connections
WARNING: To prevent electrical shock, always switch off the amplifier or receiver when making
connections to the speaker.
Micro90c II Center Channel
Connections
Connect the speaker’s terminals to the
center channel terminals on the ampli-
fier or receiver. Maintain consistency of
the + (red) and – (black) connections
by using the markings on the wire.
Micro90x II and Micro80x II
Satellite Connections
Connect the satellites to the amplifier
or receiver terminals designated for
surround or rear channel effects.
Usually, these will be labeled as “Left
Rear” and “Right Rear.” Maintain con-
sistency of the + (red) and – (black)
connections by using the markings on
the wire.
Placement
Micro90c II Center Channel
Placement
Place the Micro90c II as close to the
TV monitor as possible, with its front
panel flush with the front of the
television.
Self-adhesive rubber feet are included
with the Micro90c II to protect the
TV’s finish and prevent vibration.
Micro90x II and Micro80x II Satellite
Placement
For the most realistic surround effects, place the surround speakers so the sound is diffused
around the listening area. Avoid pointing them directly at the listeners.
Micro90c

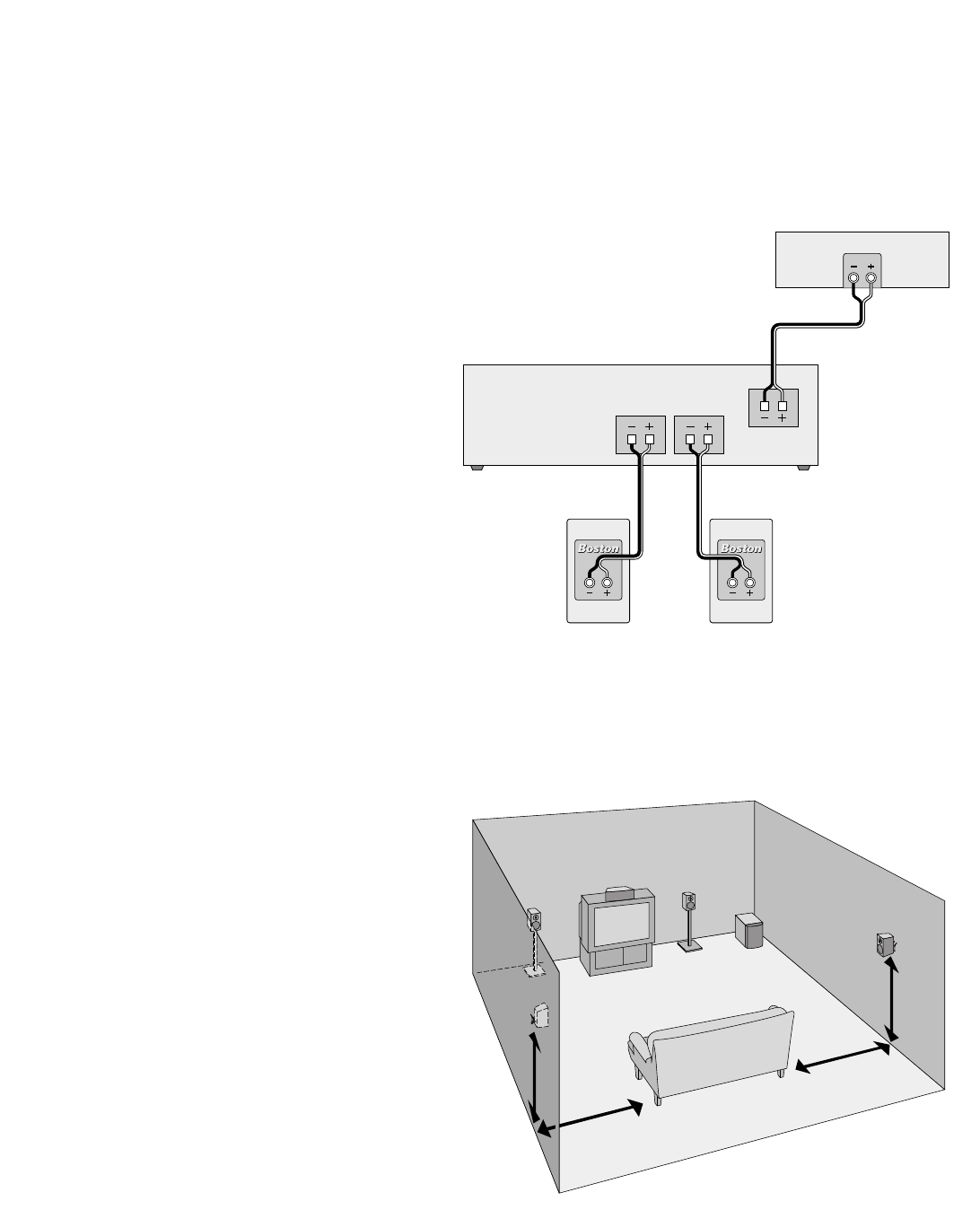

Rear channel
Center channel
Left Right
Receiver or amplifier
Left Micro satellite Right Micro satellite
Place the surround
satellite beside or
behind the listeners
Center channel
flush with
front of TV
5–9 ft.
(1.5–3m)
IMPORTANT: Be sure to hook + to +, – to –.
4
