Speaker Installation
If the power level is known, then select it using the front-mounted selector switch
prior to installing the speaker. See section Selecting Power Levels.

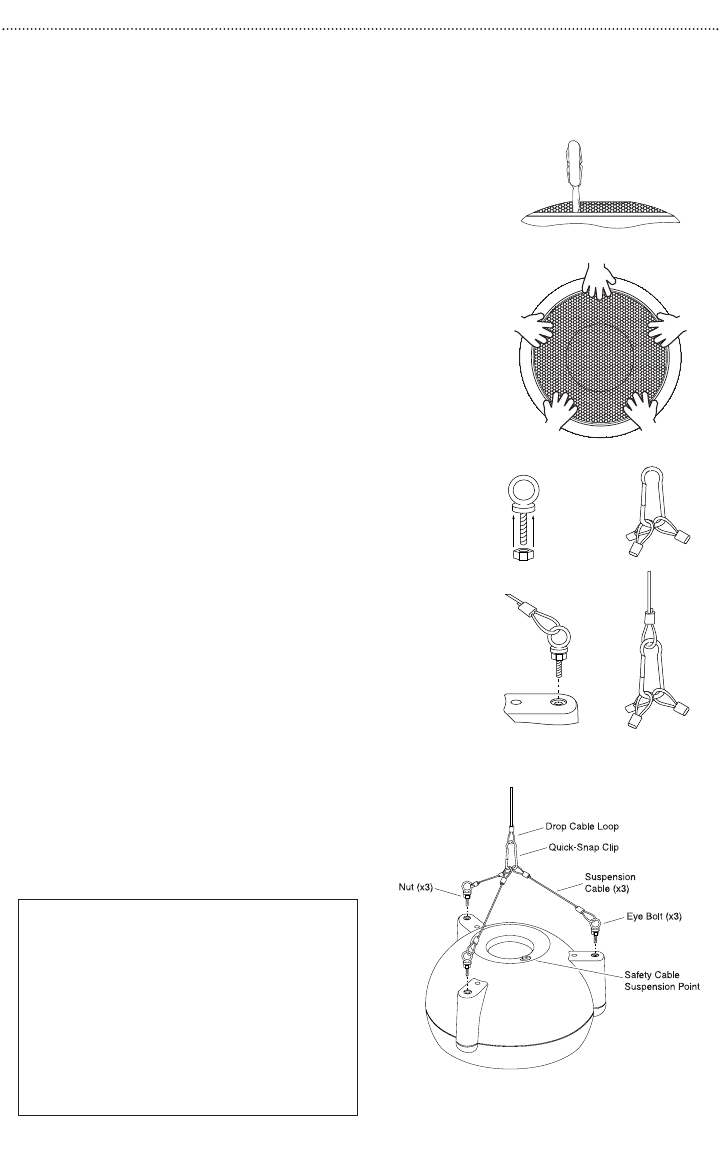

Speaker Grille Removal
Insert a pocket knife blade between the grille and the
bezel about a
1
/4" deep and then gently pry the grille
upwards. Do this in multiple places around the circum-
ference of the grille to free the grille.
Speaker Grille Installation
The speaker grilles fit tightly! Make sure the tap set-
tings are correct prior to installing grille. Push the
speaker grille in until it can go no further. Then, slap
around the edge of the grille to seat the grille. The
grille is properly seated when it is flush with the edge
of the bezel.
Suspension Cable Assembly
1. Screw nuts onto the eye bolts all the way to
the flange.
2. Screw in eye bolts with captured cable sec-
tions in to the three suspension points.
Do not overtighten.
3. Snap loops of free end of cable sections into
quick-snap clip.
4. Connect quick-snap clip to drop cable. The
supplied cable kit is suitable for use as the
drop cable.
Safety Cable
The speaker includes a safety cable suspension
point for extra protection. The included cable kit
must be used as a safety cable. Refer to instruc-
tions with cable kits for proper use.
2
IMPORTANT
The anchor point and any hardware used
to anchor the speaker must be able to
support the speaker’s weight under all
conditions. IF YOU ARE NOT SURE OF
THE PROPER CAPACITY OF THESE
ITEMS TO USE, CONSULT A STRUCTUR-
AL ENGINEER. Mount only one speaker
per supplied quick-snap clip.
1.
2.
3.
4.
