Technical Features
Description
Drive units
Frequency range
Frequency response
Dispersion
Sensitivity
Harmonic distortion
Nominal impedance
Crossover frequencies
Power handling
Max. recommended cable impedance
Dimensions
Net Weight
Baffle mounted Nautilus™ tweeter
Woven Kevlar® brand fibre cone bass/midrange
Flowport
2
1
/
2

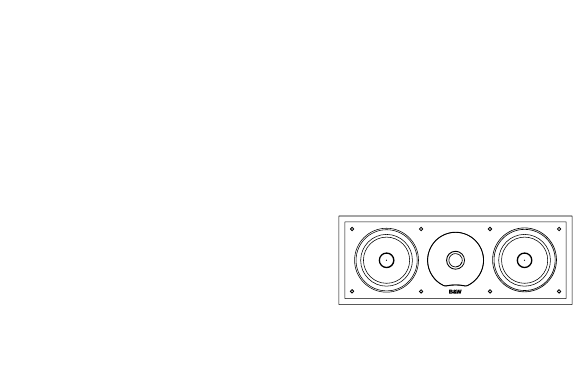

-way vented-box centre speaker
1x ø25mm (1 in) alloy dome high-frequency
2x ø130mm (5.5 in) woven Kevlar® cone bass/midrange
-6dB at 50Hz and 30kHz
65Hz – 20kHz ±3dB on reference axis
Within 2dB of reference response
Horizontal: over 40˚ arc
Vertical: over 10˚ arc
89dB spl (2.83V, 1m)
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz – 20kHz
<0.5% 150Hz – 20kHz
8Ω (minimum 3.6Ω)
400Hz, 4kHz
50W – 120W into 8Ω on unclipped programme
0.1Ω
Height: 175mm (6.9 in)
Width: 460mm (18.1 in)
Depth: 230mm (9.05 in)
7.5 kg (16.5 lb)
CMC
