Description
Drive units
Frequency range
Frequency response
Dispersion
Sensitivity
Harmonic distortion
Nominal impedance
Crossover frequencies
Power handling
Max. recommended
cable impedance
Dimensions
Net Weight

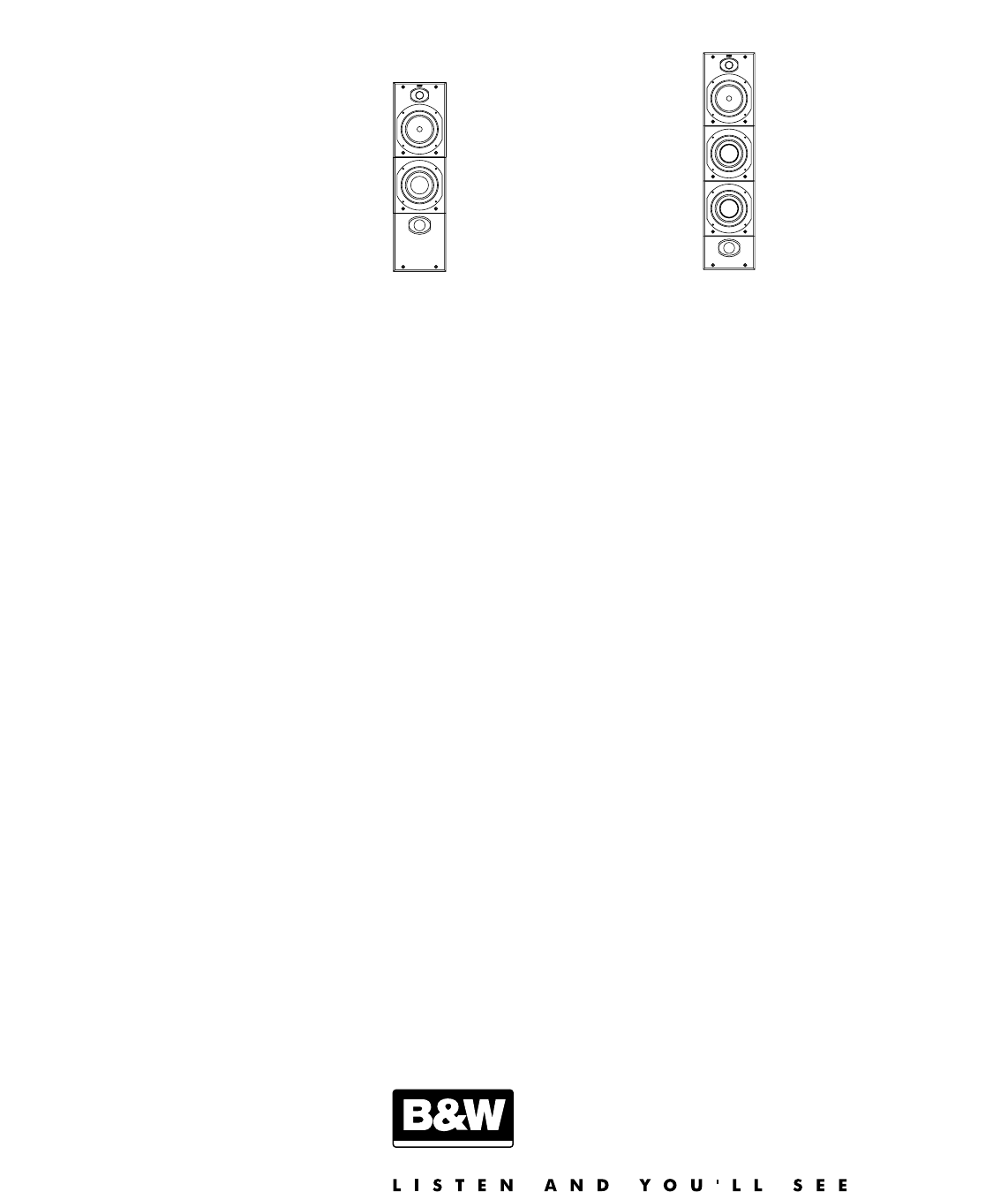

DM
™
603 S2
Kevlar is a registered trademark of Dupont.
B&W Loudspeakers Ltd. reserves the right to amend details of the specification without notice in line with technical developments.
Copyright © B&W Loudspeakers Ltd. Printed in England.
B&W Loudspeakers Ltd, Meadow Road, Worthing, BN11 2RX Tel: +44 (0) 1903 524801 Fax: +44 (0) 1903 524725
http://www.bwspeakers.com
2
1
/2-way 4th-order vented-box system
1x 180mm (7in) paper/Kevlar
®
bass
1x 180mm (7in) wovenKevlar
®
cone bass/mid
1x 26mm (1in) metal dome high-frequency
-6dB at 37Hz and 30kHz
48Hz - 20kHz ±3dB on reference axis
Within 2dB of response on reference axis
Horizontal: over 40° arc
Vertical: over 10° arc
90dB spl (2.83V, 1m)
2nd & 3rd harmonics
<1% 60Hz - 20kHz (90dB spl, 1m)
8Ω (minimum 4.3Ω)
150Hz, 4kHz
25W-150W continuous into
8Ω on unclipped programme
0.1Ω
Height: 850mm (33.5 in)
Width: 236mm (9.3 in)
Depth: 306mm (12 in)
19.0kg (41.8 lb)
I4936 Issue 1
DM
™
604 S2
3-way 4th-order vented-box system
2x 180mm (7in) paper/Kevlar
®
bass
1x 180mm (7in) woven Kevlar
®
cone midrange
1x 26mm (1in) metal dome high-frequency
-6dB at 34Hz and 30kHz
44Hz - 20kHz ±3dB on reference axis
Within 2dB of response on reference axis
Horizontal: over 40° arc
Vertical: over 10° arc
90dB spl (2.83V, 1m)
2nd & 3rd harmonics
<1% 42Hz - 20kHz (90dB spl, 1m)
8Ω (minimum 3Ω)
450Hz, 4kHz
25W-200W continuous into
8Ω on unclipped programme
0.1Ω
Height: 996mm (39.2 in)
Width: 236mm (9.3 in)
Depth: 411mm (16.2 in)
28.2kg (62 lb)
