– 93 –
KP-41T65C/53S65C/61S65C
RM-Y136ARM-Y136A
RM-Y136A
The componants identified by
shading and mark
are criti-
cal for safety.
Replace only with part number
specified.
151
152
155
168
153
154
156
157
169
158
170
159
171
157
167
166
165
164
161
160
163
162
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––
162 8-598-339-00 TUNER, FSS BTF-LA402
163 8-598-340-00 TUNER, FSS BTF-WA404
164 1-551-448-61 CABLE, P-P
165 * 1-557-056-41 CABLE, P-P
166 8-598-414-00 ANTENNA SWITCH AS-2F
167 4-057-595-21 TERMINAL BOARD
168 4-378-522-31 SCREW (4X20), TAPPING
169 ! 1-453-248-11 TRANSFORMER ASSY, FLYBACK
(NX-4007//X4T4)
170 *
A-1241-309-A
F BOARD, COMPLETE
171 * 4-060-974-01 BRAKET, F

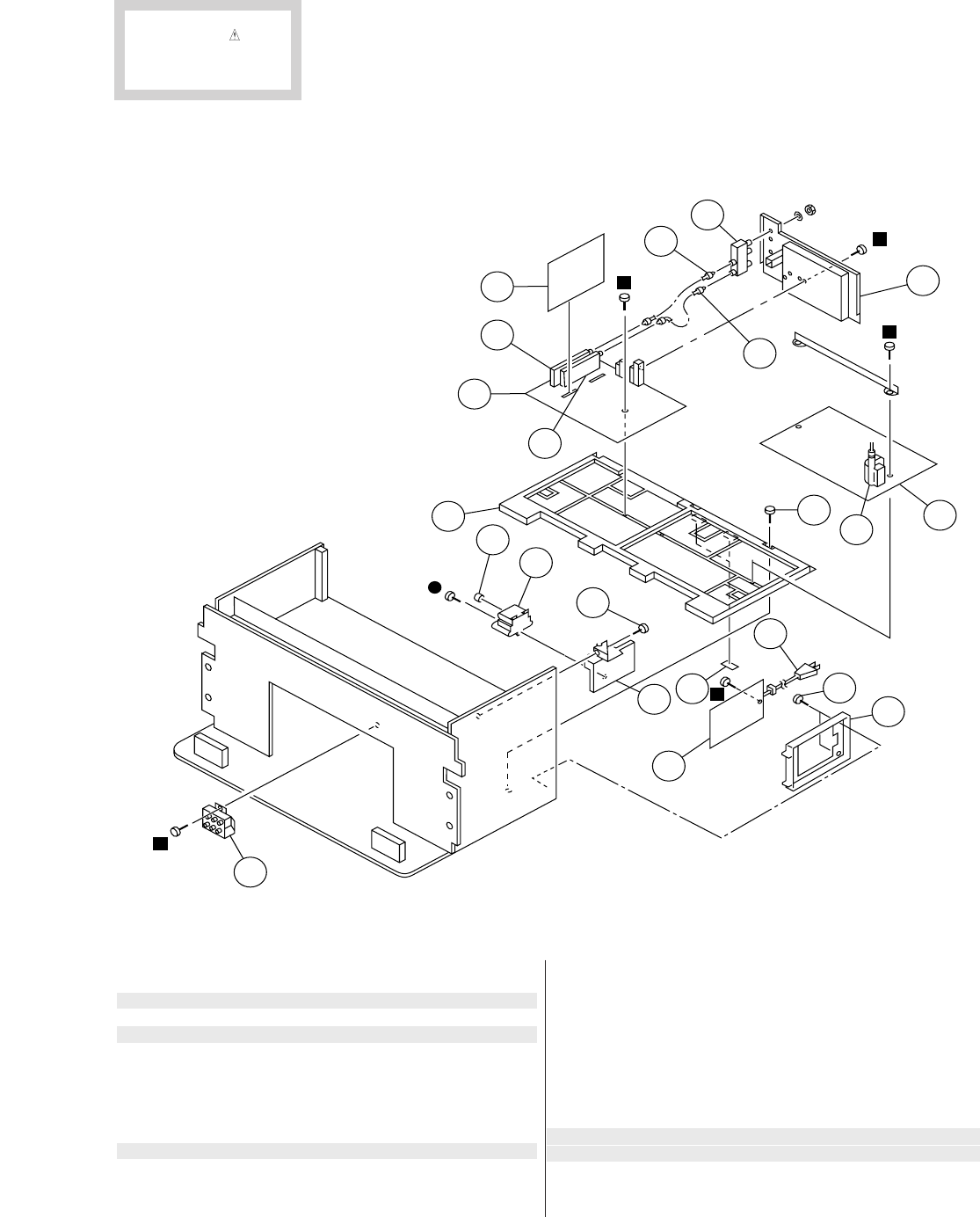

7-4. CHASSIS (KP-41T65C)
r : +BVTP 4X12 7-685-661-14
p : +BVTP 3X12 7-685-648-79
151 ! 1-223-925-12 RESISTOR ASSY (HIGH-VOLTAGE)
152 * 4-057-596-01 BRACKET, HV
153 ! 8-598-955-30 BLOCK ASSY, HIGH-VOLTAGE
154 4-373-137-01 CAP (Z), RUBBER
155 3-551-305-21 CUSHION, PANEL
156 * 4-057-594-01 BRACKET, MAIN
157 4-052-894-01 SCREW (4X20), HEAD TAPPING
158 *
A-1316-392-A
G BOARD, COMPLETE
159 ! 1-769-796-11 CORD, POWER (WITH NOISE FILTER)
160 *
A-1298-448-A
A BOARD, COMPLETE
161 *
A-1190-265-A
PT BOARD, COMPLETE
