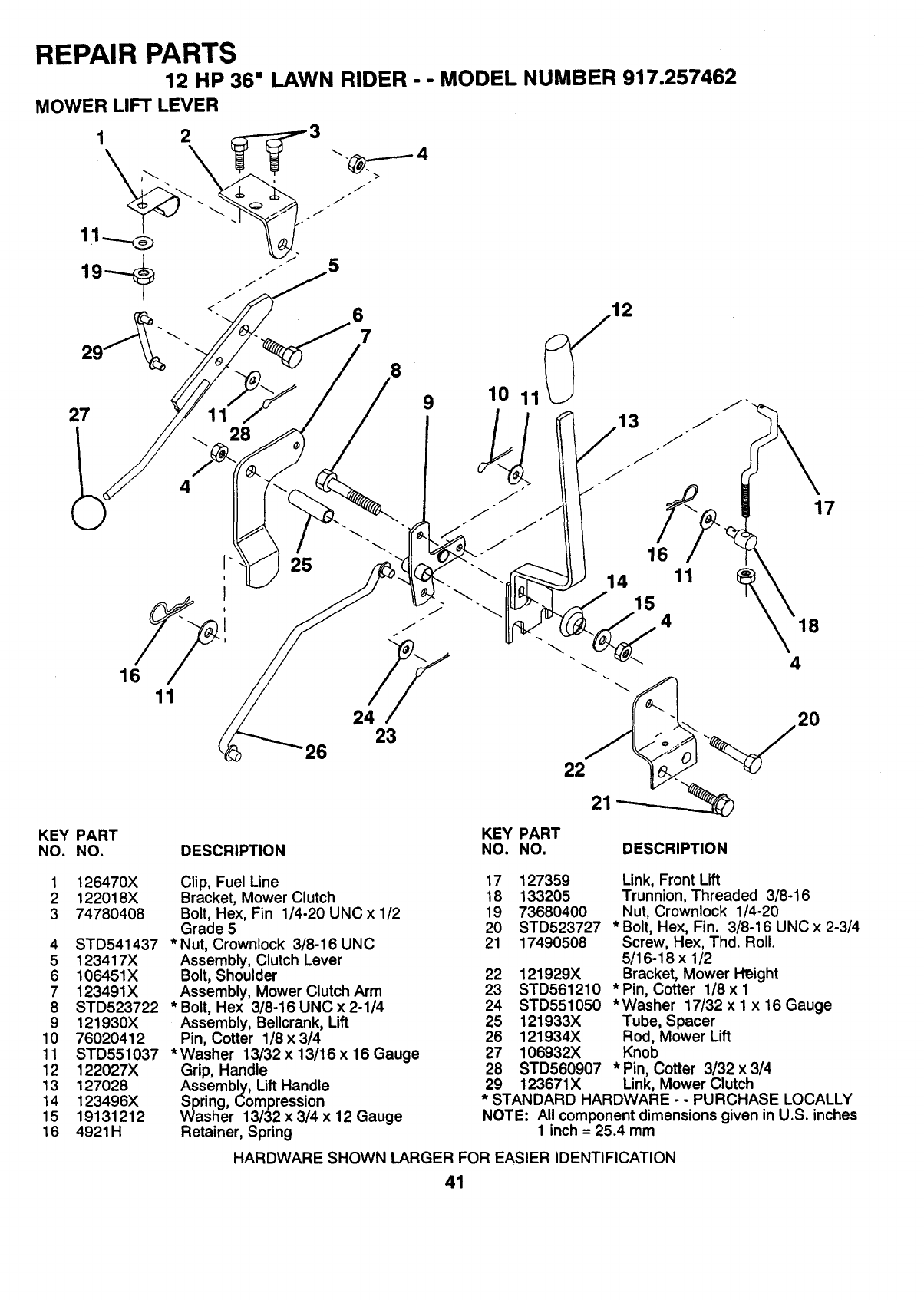

REPAIR PARTS
12 HP 36" LAWN RIDER - - MODEL NUMBER 917.257462
MOWER LIFT LEVER
KEY
NO.
11
24
23
26
16
22
PART KEY PART
NO. DESCRIPTION NO. NO, DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
126470X Clip, Fuel Line 17
122018X Bracket, Mower Clutch 18
74780408 Bolt, Hex, Fin 1/4-20 UNC x 1/2 19
Grade 5 20
STD541437 * Nut, Crownlock 3/8-16 UNC 21
123417X Assembly, Clutch Lever
106451X Bolt, Shoulder 22
123491X Assembly, Mower Clutch Arm 23
STD523722 * Bolt, Hex 3/8-16 UNC x 2-1/4 24
121930X Assembly, Bellcrank, Lift 25
76020412 Pin, Cotter 1/8 x 3/4 26
STD551037 *Washer 13/32 x 13/16 x 16 Gauge 27
122027X Grip, Handle 28
127028 Assembly, Lift Handle 29
123496X Spring, Compression
19131212 Washer 13/32 x 3/4 x 12 Gauge
4921 H Retainer, Spring
127359
133205
7368O400
STD523727
17490508
121929X
STD561210
STD551050
121933X
121934X
106932X
STD560907
123671X
Link, Front Lift
Trunnion, Threaded 3/8-16
Nut, Crownlock 1/4-20
* Bolt, Hex, Fin. 3/8-16 UNC x 2-3/4
Screw, Hex, Thd. Roll.
5/16-18 x 1/2
Bracket, Mower I-_ight
* Pin, Cotter 1/8 x 1
* Washer 17/32 x I x 16 Gauge
Tube, Spacer
Rod, Mower Lift
Knob
* Pin, Cotter 3/32 x 3/4
Link, Mower Clutch
* STANDARD HARDWARE - - PURCHASE LOCALLY
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
41
