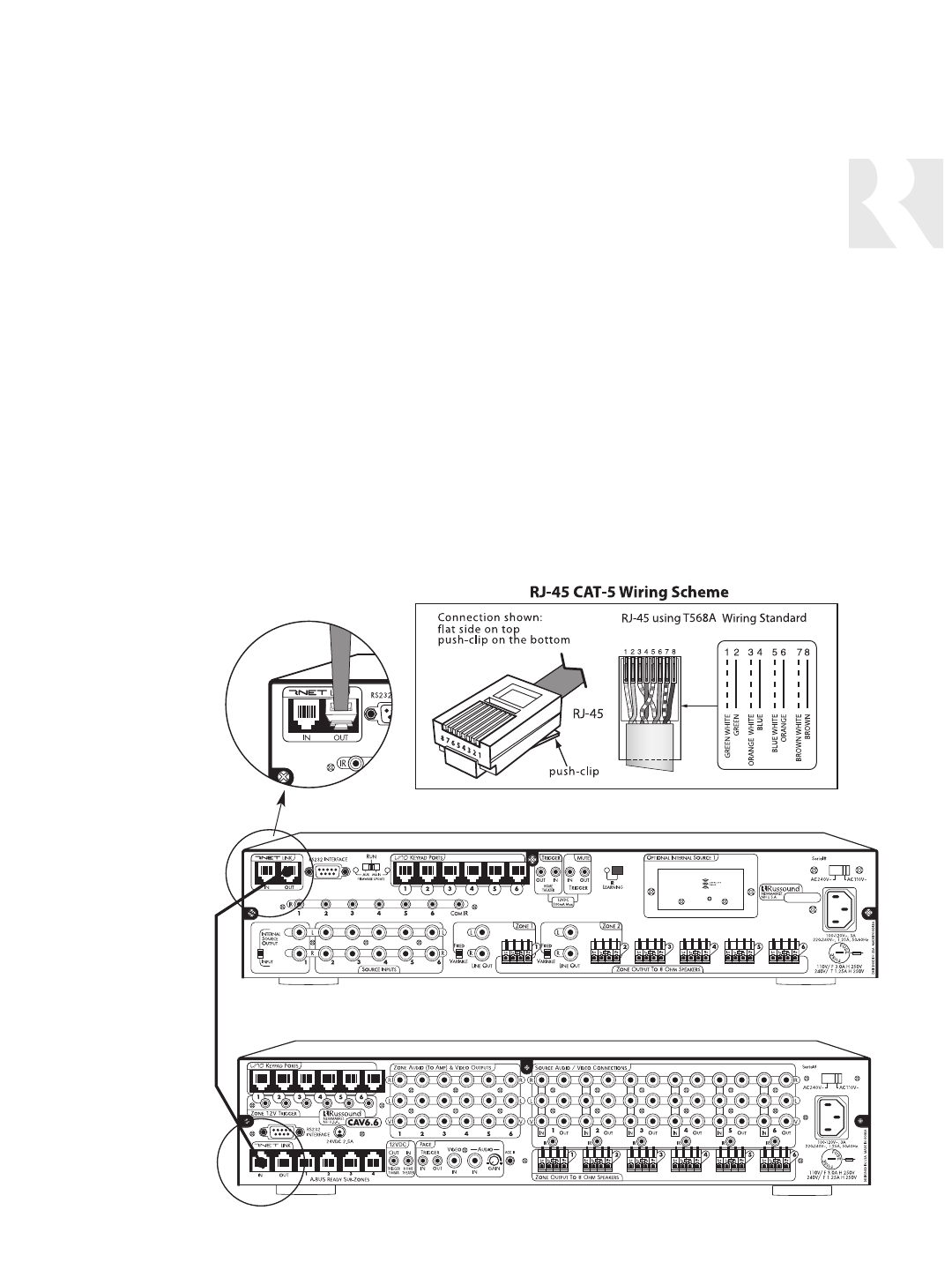

The RNET Link In and Link Out is used to con-
nect two or more CAM6.6 or CAV6.6 con-
trollers. The connection is made using a CAT-5
patch cable from the Link Out of the master
CAM6.6 and into the Link In of the next con-
troller. Along with RNET data signals, the RNET
Link In and Link Out jack passes the six source
IR signals. These are only for source-specific IR
remote repeating, not codes initiated from the
controller’s internal IR library. The CAT-5 patch
cable should not exceed 18 inches in length to
avoid potential cross-talk between the source-
specific IR repeating signal lines.
The RNET Link In and Link Out is also used to
connect the CAM6.6 to other Russound prod-
ucts with RNET.
Note: If two or more CAM6.6 or CAV6.6 con-
trollers will be connected using the RNET Link In
and Link Out ports, each controller must have a
unique Controller ID prior to being connected
through the RNET ports. The Controller ID
assignment must be performed during the
Controller Setup section of the Installation menu.
