AUXPWR Cable
SERIAL
Ribbon Cables
Fibre Channel Option
Executive PCBA

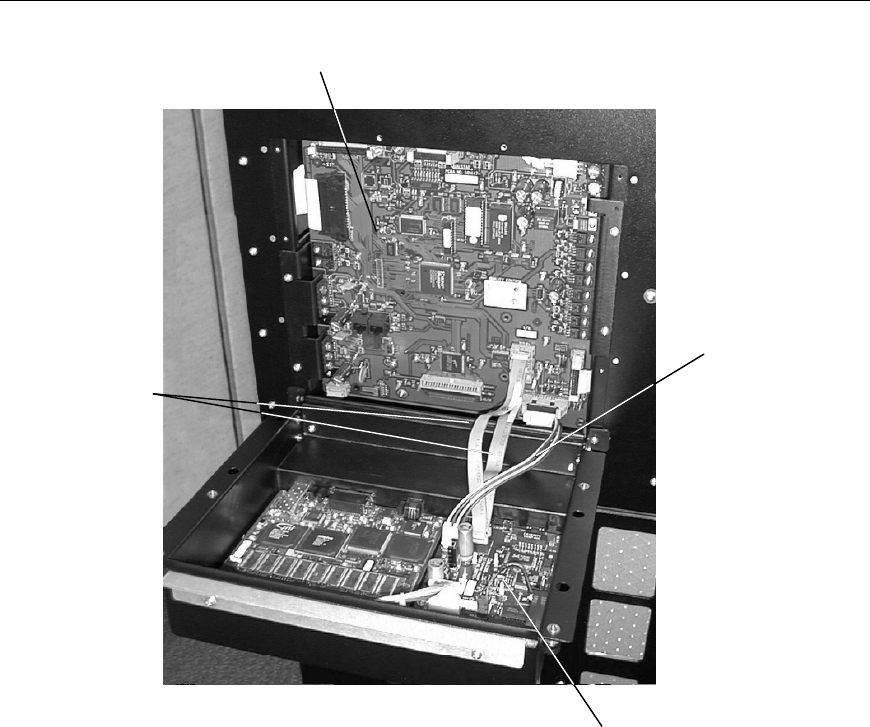

Figure 6-12 Executive PCBA and Fibre Channel Option (Executive IV PCBA Shown)
8. The FCO’s SERIAL ribbon cable will connect to differently named connectors on
the Executive PCBA depending on which version of Executive PCBA is installed
in the library. Executive III PCBA’s will have part number 501387-printed on
them and Executive IV boards will have part number 501447- on them. Refer to
Figure 6-13 to determine which version of Executive PCBA the FCO is being
connected to.
6-14 FCO Type C Installation 501440 Rev. G
