Alignment
To align machine so that it is centered
to shoot equal distance to forehand
and backhand:
• Lift handle and look on underside
of machine.
• Turn sweep on until lines match.
• Set machine in position on serving
line with ball exit hole directly over
center line.
Ball Feed Instructions
For safety reasons the ball feed will
not activate when the machine is first
powered on.
MODEL #1, 2, & 3:
After the
machine is powered up for 15 seconds,
the feed control knob must be turned to
the O (off) position and then back on to
the desired feed rate (the ball feed will
start immediately).

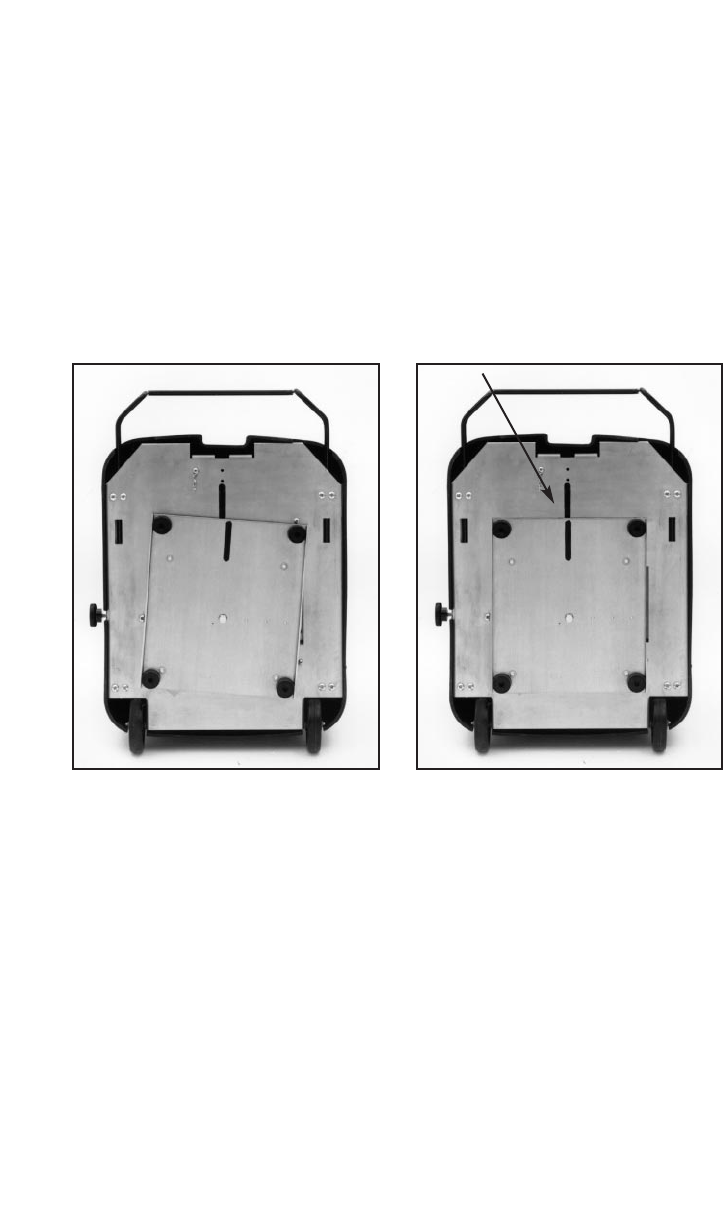

These lines need to be matched up.
3
NOTE:
There is a chain beneath
the machine which helps prevent
static electricity build up. If machine is
operated on carpeting or wood floors
for an extended period of time, static
build up is probable and could cause
the machine to not operate properly.
Incorrect Correct
MODEL #4:
Has a built in delay that
starts the ball feed ten seconds after
turning the feed switch on (to allow the
operator to reach the opposite side of
the court).
