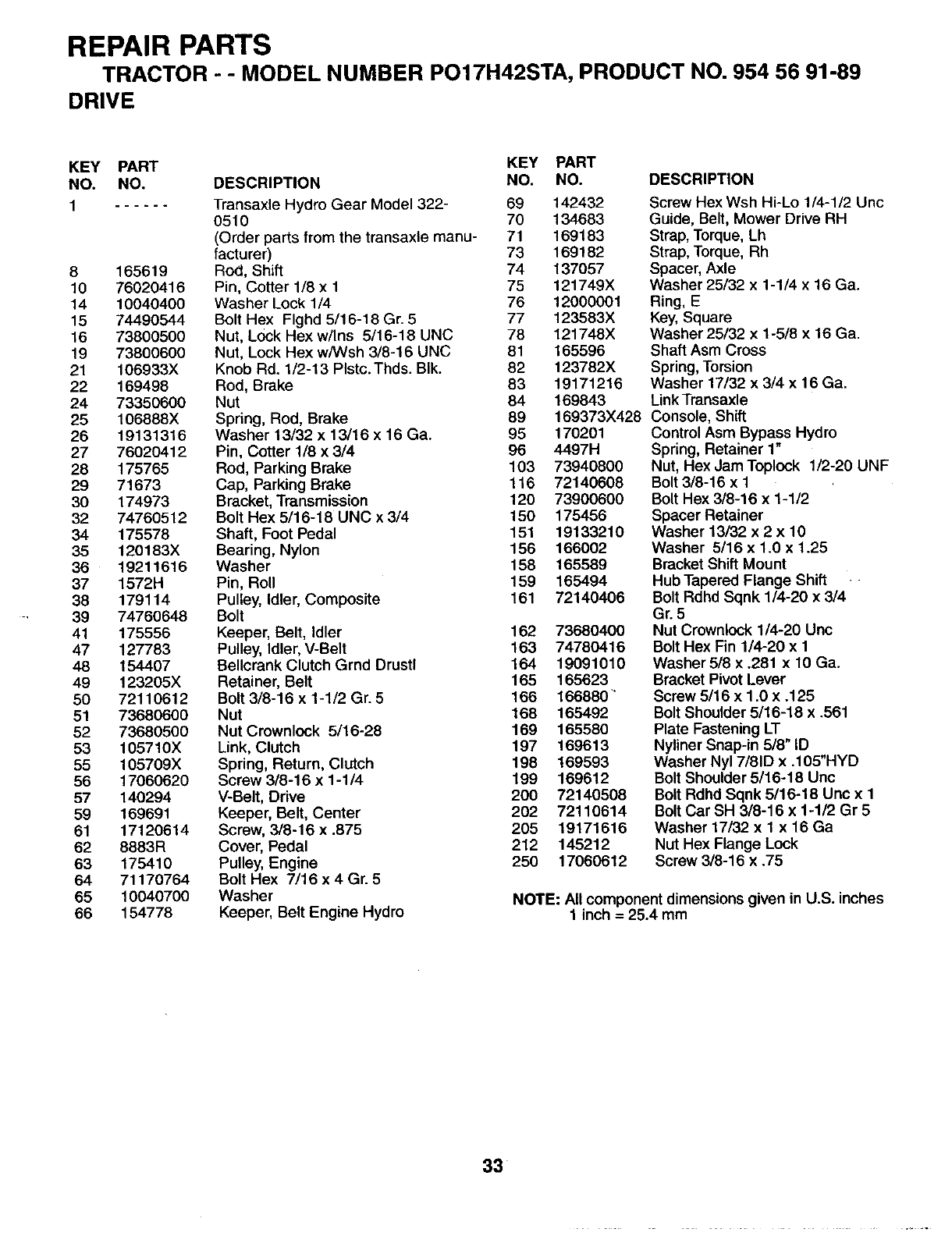

REPAIR PARTS
TRACTOR - - MODEL NUMBER PO17H42STA, PRODUCT NO. 954 56 91-89
DRIVE
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 ...... Transaxle Hydro Gear Model 322- 69 142432
0510 70 134683
(Order parts from the transaxle manu- 71 169183
facturer) 73 169182
8 165619 Rod, Shift 74 137057
10 76020416 Pin, Cotter 1/8 x 1 75 121749X
14 10040400 Washer Lock 1/4 76 12000001
15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 77 123583X
16 73800500 Nut, Lock Hex w/Ins 5116-18 UNC 78 121748X
19 73800600 Nut, Lock Hex w/VVsh 3/8-16 UNC 81 165596
21 106933X Knob Rd. 1/2-13 Plstc.Thds. BIk. 82 123782X
22 169498 Rod, Brake 83 19171216
24 73350600 Nut 84 169843
25 106888X Spring, Rod, Brake 89 169373X428
26 19131316 Washer 13/32 x 13/16 x 16 Ga. 95 170201
27 76020412 Pin, Cotter 1/8 x 3/4 96 4497H
28 175765 Rod, Parking Brake 103 73940800
29 71673 Cap, Parking Brake 116 72140608
30 174973 Bracket, Transmission 120 73900600
32 74760512 Bolt Hex 5/16-18 UNC x 3/4 150 175456
34 175578 Shaft, Foot Pedal 151 19133210
35 120183X Bearing, Nylon 156 166002
36 19211616 Washer 158 165589
37 1572H Pin, Roll 159 165494
88 179114 Pulley, Idler, Composite 161 72140406
39 74760648 Bolt
41 175556 Keeper, Belt, Idler 162 73680400
47 127783 Pulley, Idler, V-Belt 163 74780416
48 154407 BellcrankClutch Grnd Drustl 164 19091010
49 123205X Retainer, Belt 165 165623
50 72110612 Bolt 3/8-16 x 1-1/2 Gr. 5 166 166880"
51 73680600 Nut 168 165492
52 73680500 NutCrownlock 5/16-28 169 165580
53 105710X Link, Clutch 197 169613
55 105709X Spring, Return, Clutch 198 169593
56 17060620 Screw 3/8-16 x 1-1/4 199 169612
57 140294 V-Belt, Drive 200 72140508
59 169691 Keeper, Belt, Center 202 72110614
61 17120614 Screw, 3/8-16 x.875 205 19171616
62 8883R Cover, Pedal 212 145212
63 175410 Pulley, Engine 250 17060612
64 71170764 Bolt Hex 7/16 x 4 Gr. 5
65 10040700 Washer
66 154778 Keeper, Belt Engine Hydro
DESCRIPTION
Screw Hex Wsh Hi-Lo 1/4-1/2 Unc
Guide, Belt, Mower Drive RH
Strap, Torque, Lh
Strap, Torque, Rh
Spacer, Axle
Washer 25/32 x 1-1/4 x 16 Ga.
Ring, E
Key, Square
Washer 25/32 x 1-5/8 x 16 Ga.
Shaft Asm Cross
Spring, Torsion
Washer 17/32 x 3/4 x 16 Ga.
LinkTransaxle
Console, Shift
Control Asm Bypass Hydro
Spring, Retainer 1"
Nut, Hex Jam Toplock 1/2-20 UNF
Bolt 3/8-16 x 1
Bolt Hex 3/8-16 x 1-1/2
Spacer Retainer
Washer 13/32 x 2 x 10
Washer 5/16 x 1.0 x 1.25
Bracket Shift Mount
Hub Tapered Flange Shift
Bolt Rdhd Sqnk 1/4-20 x 3/4
Gr. 5
Nut Crownlock 1/4-20 Unc
BoltHex Fin 1/4-20 x 1
Washer 5/8 x .281 x 10 Ga.
Bracket Pivot Lever
Screw 5/16 x 1.0 x .125
BoltShoulder 5/16-18 x .561
Plate Fastening LT
Nyliner Snap-in 5/8" ID
Washer Nyl 7/81D x .105"HYD
Bolt Shoulder 5/16-18 Unc
Bolt Rdhd Sqnk 5/16-18 Unc x 1
Bolt Car SH 3/8-16 x 1-1/2 Gr 5
Washer 17132 x 1 x 16 Ga
Nut Hex Flange Lock
Screw 3/8-16 x .75
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
