The S(uper)-Video connection on
the rear of the television can give
you better picture detail and clar-
ity, for the playback of S-VHS
VCR tapes, or Digital Video Discs
than the normal antenna picture
connections.
Note: The accessory device being
used must have a S-Video Output
to complete this connection. The
following steps show the connec-
tions to the S-VIDEO and
AUDIO IN 1 input jacks,
Connect the S-VIDEO
CABLE to the S-VIDEO input
jack on the rear of the television,
then the AUDIO (red and white)
to the AUDIO AV1 (l[rft and right)
jacks on the rear of the TV.
<,_ Connect the S-VIDEO
CABLE to the S-VIDEO output
jack on the accessory device•
Then connect the red and white
AUDIO CABLES to the AUDIO
deft and right) output jacks on the
rear of the accessory device.
<,_ Turn the VCR
(or
Digital
I Video Disc Player) ON.
_._ Press the MENU button
on
the remote to display the onscreen
menu.
_1 ,_ Press the CURSOR UP •
or
CURSOR DOWN • buttons
until the word INPUT is highlight-
ed.
Press the CURSOR RIGHT
or CURSOR LEFt
button to display the INPUT menu
(ANTENNA, EXT 1, EXT 2). Use
the CURSOR UP • or DOWN •
buttons to select EXT 1.
Now your ready to use the accesso-
ry device with the S-Video outputs.
O
NOTE: If thereis an accessory device plugged into
[the S-VIDEOjack and one pluggedinto the VIDEO
IN-I jack. the video signal coming from theS-VIDEO
plug will be dominate when tuned to EXT 1within
the INPUT control.
__J

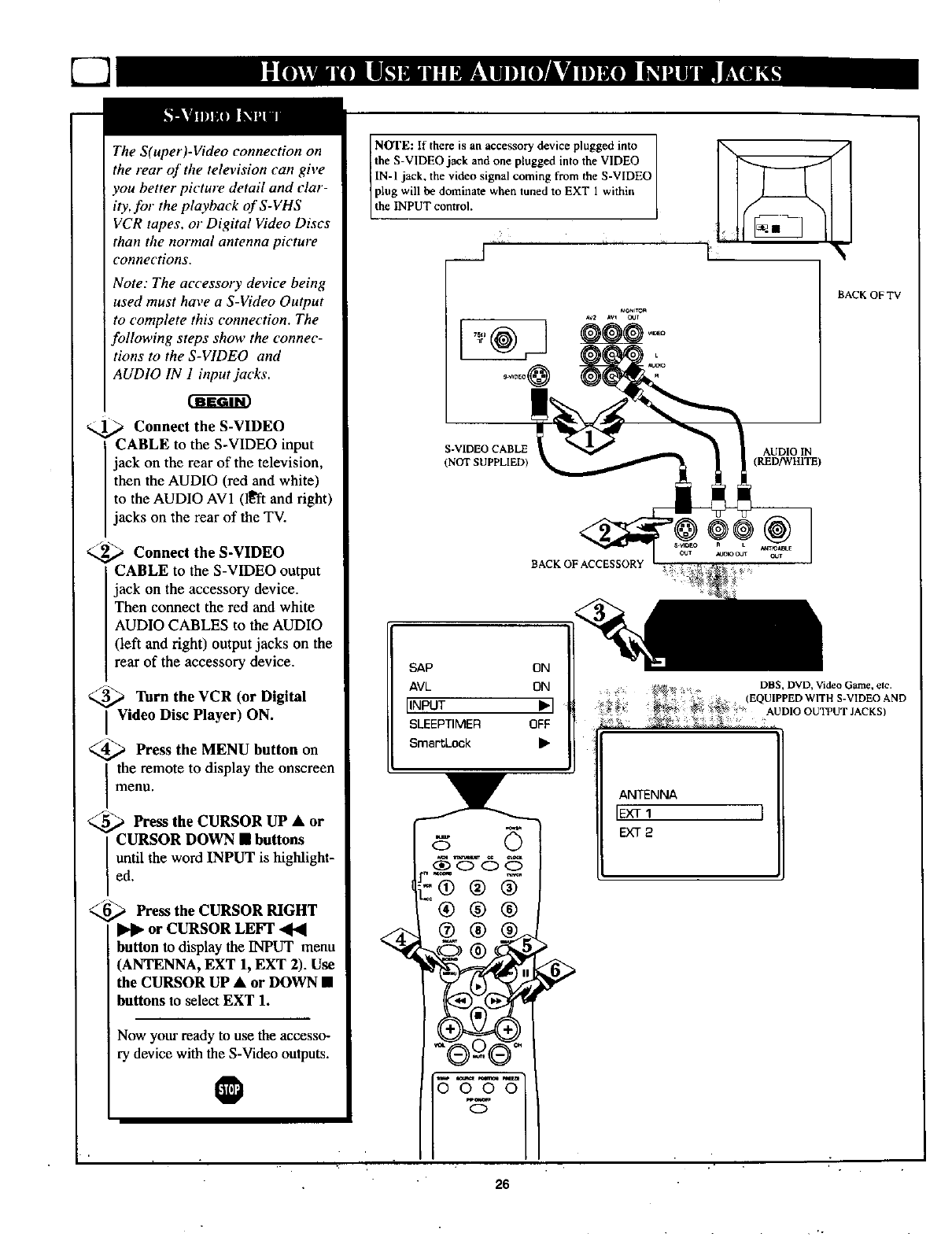

BACK OF TV
S-VIDEO CABLE
(NOT SUPPLIED)
AUDIO IN
(RED/WHITE)
RACK OF ACCESSORY
SAP ON
AVL ON
IINPUT I_1
SLEEPTIMER OFF
SmartLock •
DBS, DVD, Video Game, etc.
AUDIO OU'FPUT JACKS)
-®®®
"®®®
o®®
_w
o
ANTENNA
IEXT1 I
D(T2
