Configuring your SN4120 31
SmartNode 4120 User Manual 4 • SmartNode initial configuration
Configuring the default gateway
To configure the default gateway on the SN4120:
1. In the configuration menu pane, click IP/DNS. Click on the Routes tab. The Configuration screen for
Static Routes displays (figure 8).

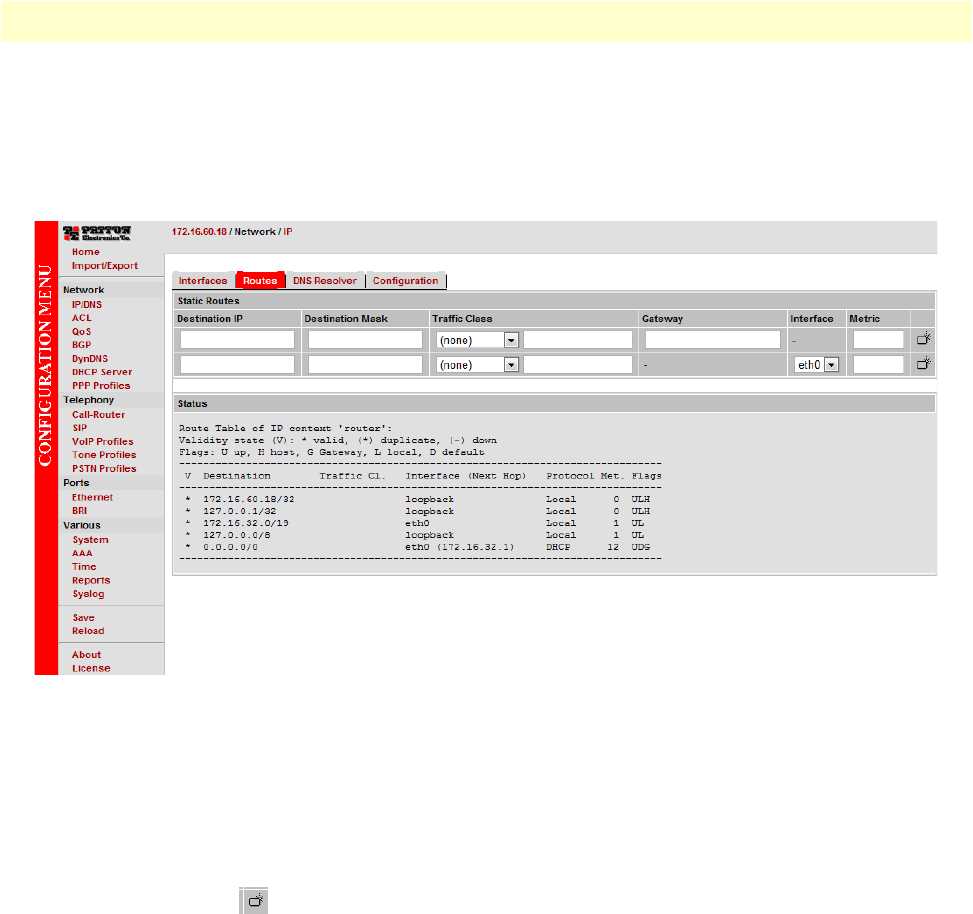

Figure 8. Default Gateway Configuration
2. Enter details for the following fields:
Destination IP—Enter 0.0.0.0 as the destination IP address for forwarding all traffic.
Destination Mask—Enter 0.0.0.0 as the destination netmask for forwarding all traffic.
Gateway—Enter the IP address of the upstream router.
3. Click the Apply icon to save your settings.
