Paslode Angled Finish Nailer Operation
Depth of Drive Adjustment
Remove the battery before adjusting the depth of
drive.

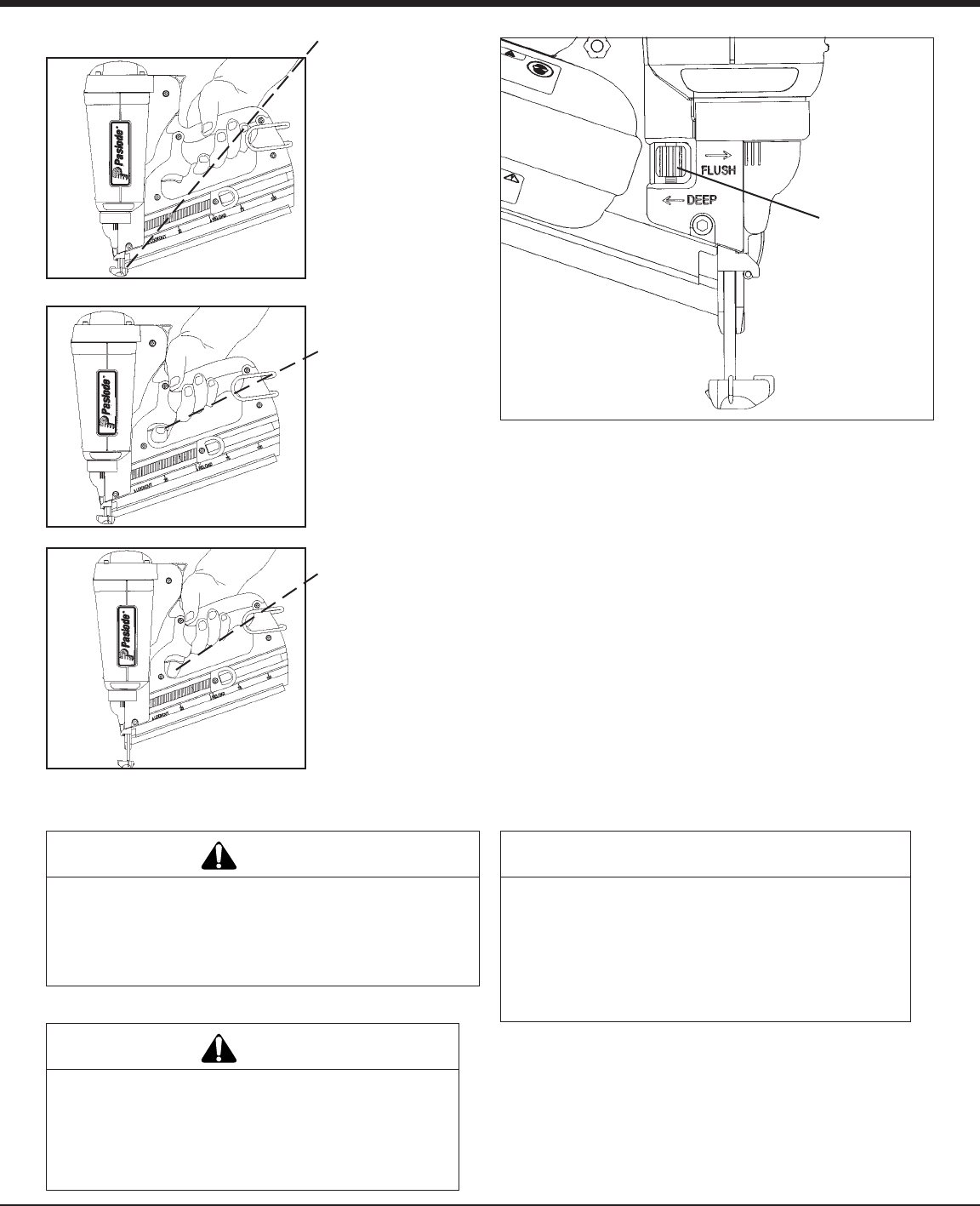

The depth of drive adjustment is done by turning the
adjustment wheel as shown by the arrows on the side of the
tool.
PRESS WORK –
CONTACTING
ELEMENT
AGAINST THE
WORK SURFACE.
Fan motor starts,
fuel is injected into
combustion
chamber and
mixed with air by
the fan.
SQUEEZE
TRIGGER
Spark plug ignites
the fuel/air mixture
driving the piston
assembly down on
the fastener.
RELEASE
TRIGGER -
LIFT TOOL
Combustion
chamber opens.
Fan exhausts hot
gases and cools
internal
components.
Turn
adjustment
wheel in
either
direction
Operation:
➔
➔
DANGER
The work contacting element and nose will become hot
after prolonged or rapid use. If it becomes necessary to
adjust the work contacting element, avoid touching with
bare hands.
DANGER
This tool must be operated in a well ventilated
environment, because the tool exhausts carbon
monoxide similar to a chainsaw or lawn mower.
Exposure to carbon monoxide may cause dizziness,
nausea or unconsciousness.
Impulse tools are powered by an internal combustion
engine and are effected by altitude. The tool may
lose power or become erratic at elevations of 4000
feet or greater.When using the tool at elevations of
4000 - 9000 ft. it is recommended that the high
altitude fuel metering valve (#219247) be used.
NOTE: Altitude Restriction
