Acoustical
(each loudspeaker)
Coverage
Crossover
Transducers
Standard Audio
Input Module*
Amplifiers
AC Power
Physical
Notes

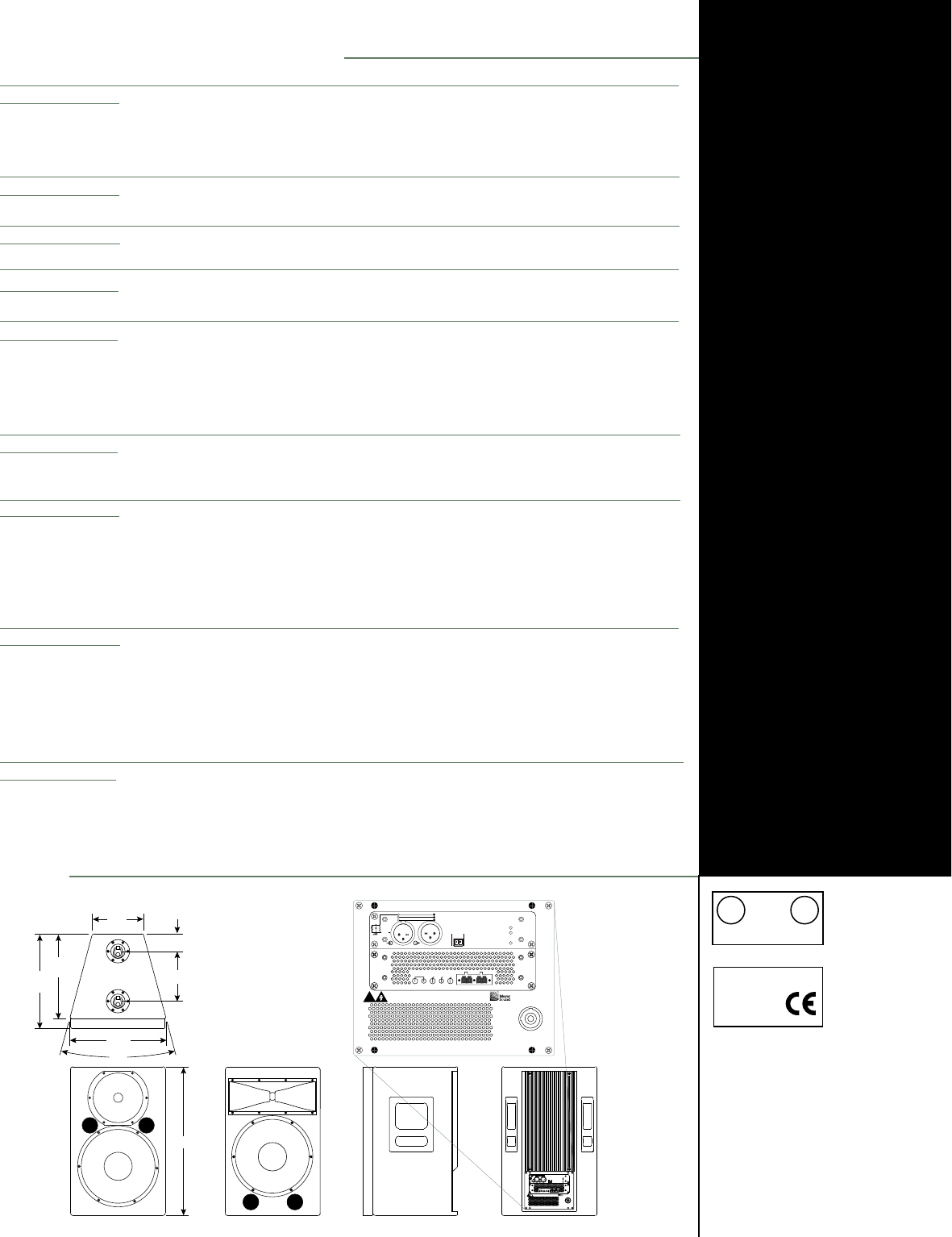

PHYSICAL DIMENSIONS
UPA-1P & 2P SPECIFICATIONS
Operating Frequency Range
2
Free Field
Half-Space
3
Phase Response
4
Maximum SPL
5
UPA-1P (-6 dB points)
UPA-2P (-6 dB points)
UPA-1P
UPA-2P
Low Frequency
High Frequency
Type
Connector
Impedance
XLR Wiring
RF Filter
Common Mode Rejection Ratio
Type
Burst capability
6
THD, IM, TIM
Connector
Automatic voltage selection
Idle RMS Current
Max Continuous RMS Current (
>10 sec)
Max Burst RMS Current (<1 sec)
Max Peak Current During Burst
Soft-Current Turn-on
Dimensions
Weight
Enclosure
Finish
Protective Grill
Rigging
60 Hz - 18 kHz
100 Hz - 16 kHz ± 3dB; -6 dB at 77 Hz and 18 kHz
77 Hz - 16 kHz ± 3dB; -6 dB at 66 Hz and 18 kHz
± 35° 600 Hz - 16 kHz; + 90° at 250 Hz
133 dB SPL
100° H; 40° V
45° H; 45° V
1200 Hz
1000 Hz
12" cone driver
3" diaphragm compression driver
Differential balanced input circuit
Female XLR; male XLR loop
10 kΩ differential balanced (between pins 2 and 3)
Pin 1: chassis; Pin 2: + signal; Pin 3: - signal
Common Mode: 425 kHz low-pass; Differential Mode: 142 kHz low-pass
> 80 dB (50 Hz - 1 kHz); typically 90 dB
Complementary power MOSFET output stages (class AB/bridged)
350 Wrms/channel
< .02 %
PowerCon locking AC connector
80-264 VAC continuous; 47/63 Hz
4
@115 V: 0.25Arms @230V: 0.13Arms @100V: 0.3Arms
@115 V: 2.8Arms @230V: 1.4Arms @100V: 3.2Arms
@115 V: 3.2Arms @230V: 1.6Arms @100V: 3.7Arms
@115 V: 5.0Apk @230V: 2.5Apk @100V: 5.8Apk
Inrush current <15A@115V
14.5" W x 22.4" H x 14.5" D
77 lbs (35 kg)
5
/
8
” plywood
Black textured
Hex perforated steel grill, charcoal grey foam
Four aircraft pan fittings (two on top, two on bottom). Working load
is 600 lb (273 kg), based on a 5:1 safety factor.
1
1. Measurements are taken at 3m on-axis,
1
/3 octave, unless otherwise stated.
2. Response depends on loading conditions and room acoustics.
3. Measured with a single boundary, 1 m from rear of cabinet.
4. Phase variation from pure delay.
5. Measured at 1 m, with pink noise or music.
6. Nominal 8Ω resistive load, pink noise, 100v peak.
* Refer to UPA series Q+A for input module options.
ALL UNITS IN INCHES
