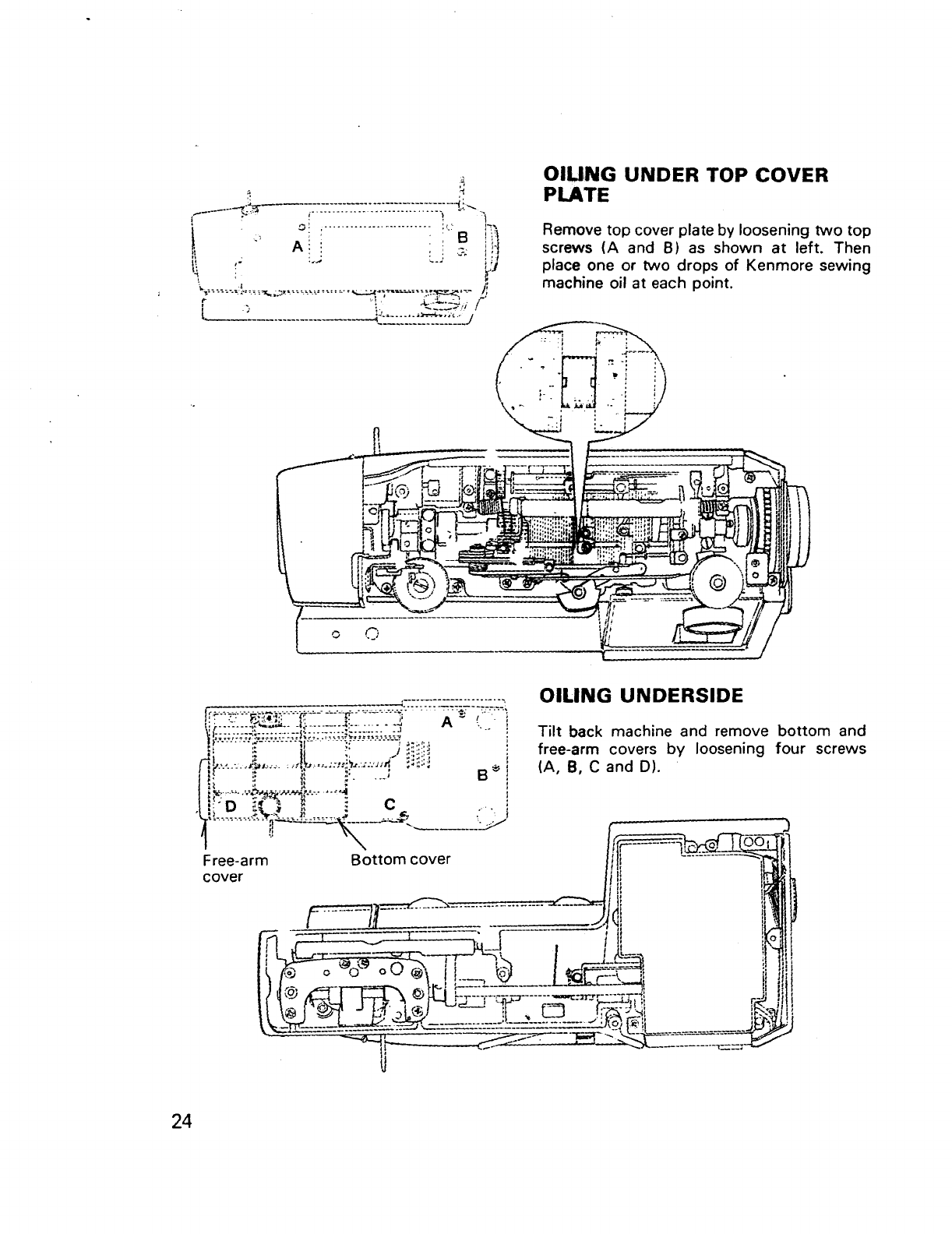

OIUNG UNDER TOP COVER
PLATE
Remove top cover plate by loosening bNO top
screws (A and B) as shown at left. Then
place one or two drops of Kenmore sewing
machine oil at each point.
................................... '.'.- _ -__"_--r':'.:'_.7 -~ -.._;_;.
:::::::::::::::::::::::::::::::::::::::::::::::::::
m:,..........,._.........lj........::...........}_::,,.j '.
,_i 2i,.......!_.......,IL.......,/ii:_i::i:_ o
I:, _ i' ;..... B ,
| t _ " ,_, : I
I I__! " . _._-z,. p, " C
4 _....-K....." Y
Free-arm Bottom cover
cover
OILING UNDERSIDE
Tilt back machine and remove bottom and
free-arm covers by loosening four screws
(A, B, C and D).
